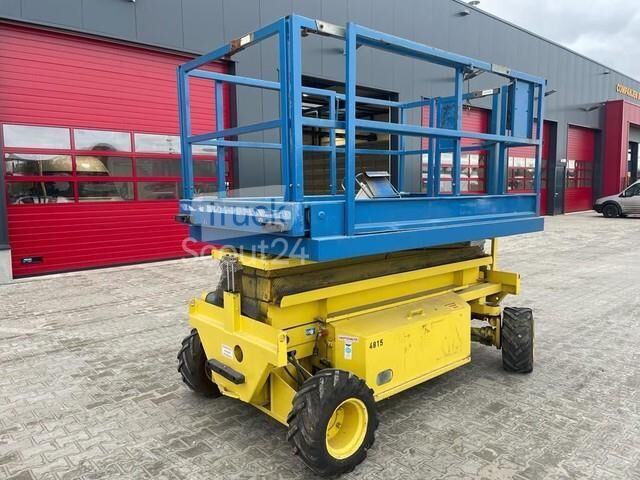

Holland Lift Y83DL16 4WD
Browse All Holland Lift or Scissor Lift Models
Contents:
Dimensions
| Overall Length | 9.68 in (2950 mm) |
| Wheelbase | 6.89 ft in (2100 mm) |
| Overall Width | 5.45 ft in (1660 mm) |
| Height W/ Rails | 8.34 ft in (2540 mm) |
| Ground Clearance | 6.5 in (165 mm) |
| Height W/O Rails | 5.48 ft in (1670 mm) |
Platform
| Max Platform Height | 27.24 ft in (8300 mm) |
| Deck Extension | 35.44 in (900 mm) |
| Max Working Height | 33.8 ft in (10300 mm) |
| Max Platform Weight Capacity | 771.62 lb (350 kg) |
| Lower Time | 24 sec |
| Platform Inner Length | 104.34 in (2650 mm) |
| Platform Inner Width | 61.03 in (1550 mm) |
| Lift Time | 30 sec |
Engine
| Engine Make | 2334 |
| Engine Model | D722 |
| System Voltage | 24 V |
| Battery Amp Hours | 240 |
Operational
| Operating Weight | 7407.6 lb (3360 kg) |
| Max Speed | 2.1 mph (3.3 km/h) |
| Tire Size | 23x10.5-12 |
