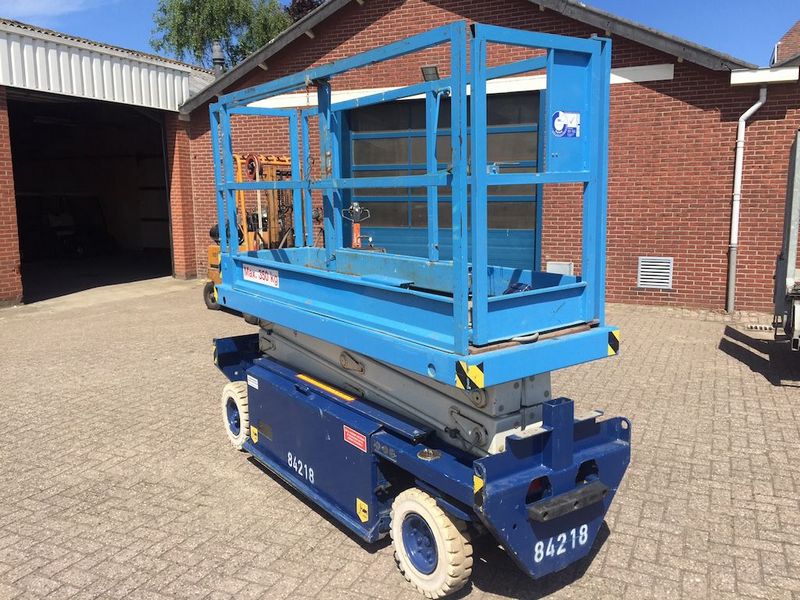

Holland Lift Y64EL8
Browse All Holland Lift or Scissor Lift Models
Contents:
Dimensions
| Overall Length | 9.68 in (2950 mm) |
| Wheelbase | 6.67 ft in (2030 mm) |
| Overall Width | 2.79 ft in (850 mm) |
| Height W/ Rails | 8.37 ft in (2550 mm) |
| Ground Clearance | 3.55 in (90 mm) |
| Height W/O Rails | 3.78 ft in (1150 mm) |
Platform
| Max Platform Height | 21 ft in (6400 mm) |
| Deck Extension | 35.44 in (900 mm) |
| Max Working Height | 27.56 ft in (8400 mm) |
| Max Platform Weight Capacity | 771.62 lb (350 kg) |
| Lower Time | 33 sec |
| Platform Inner Length | 104.34 in (2650 mm) |
| Platform Inner Width | 33.08 in (840 mm) |
| Lift Time | 36 sec |
Engine
| System Voltage | 24 V |
| Battery Amp Hours | 180 |
Operational
| Operating Weight | 5269.1 lb (2390 kg) |
| Max Speed | 2.2 mph (3.4 km/h) |
| Tire Size | 23x10.5-12 |
