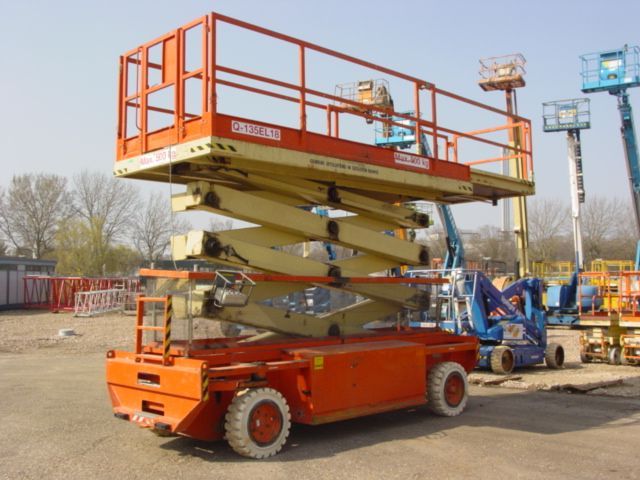

Holland Lift Q135EL18
Browse All Holland Lift or Scissor Lift Models
Contents:
Dimensions
| Overall Length | 15.26 in (4650 mm) |
| Wheelbase | 10.11 ft in (3080 mm) |
| Overall Width | 5.91 ft in (1800 mm) |
| Height W/ Rails | 9.85 ft in (3000 mm) |
| Ground Clearance | 4.89 in (124 mm) |
| Height W/O Rails | 7.39 ft in (2250 mm) |
Platform
| Max Platform Height | 44.3 ft in (13500 mm) |
| Deck Extension | 70.87 in (1800 mm) |
| Max Working Height | 50.86 ft in (15500 mm) |
| Max Platform Weight Capacity | 1653.47 lb (750 kg) |
| Lower Time | 44 sec |
| Platform Inner Length | 167.72 in (4260 mm) |
| Platform Inner Width | 70.08 in (1780 mm) |
| Lift Time | 63 sec |
Engine
| Engine Make | 0 |
| System Voltage | 48 V |
| Battery Amp Hours | 400 |
Operational
| Operating Weight | 16292.2 lb (7390 kg) |
| Max Speed | 1.5 mph (2.3 km/h) |
| Tire Size | 28x9-15 |
