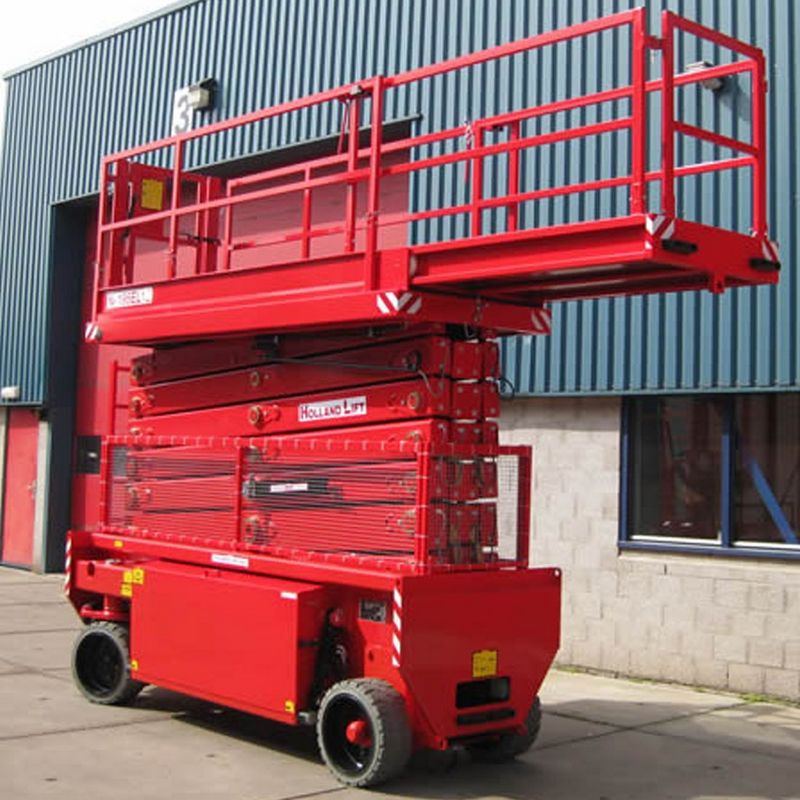

Holland Lift N265EL13
Browse All Holland Lift or Scissor Lift Models
Contents:
Dimensions
| Overall Length | 18.38 in (5600 mm) |
| Wheelbase | 13.75 ft in (4190 mm) |
| Overall Width | 4.34 ft in (1320 mm) |
| Height W/ Rails | 13.46 ft in (4100 mm) |
| Ground Clearance | 6.89 in (175 mm) |
| Height W/O Rails | 10.54 ft in (3210 mm) |
Platform
| Max Platform Height | 85.96 ft in (26200 mm) |
| Deck Extension | 86.62 in (2200 mm) |
| Max Working Height | 92.52 ft in (28200 mm) |
| Max Platform Weight Capacity | 1653.47 lb (750 kg) |
| Lower Time | 126 sec |
| Platform Inner Length | 205.12 in (5210 mm) |
| Platform Inner Width | 51.19 in (1300 mm) |
| Lift Time | 156 sec |
Engine
| Engine Make | 0 |
| System Voltage | 48 V |
| Battery Amp Hours | 1150 |
Operational
| Operating Weight | 41380.8 lb (18770 kg) |
| Max Speed | 1.5 mph (2.3 km/h) |
| Tire Size | 18x10x22 |
