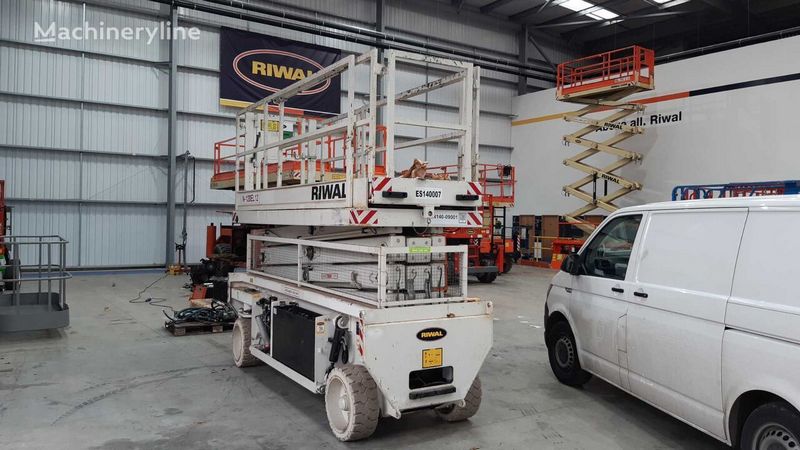

Holland Lift N120EL12
Browse All Holland Lift or Scissor Lift Models
Contents:
Dimensions
| Overall Length | 12.28 in (3740 mm) |
| Wheelbase | 8.76 ft in (2670 mm) |
| Overall Width | 3.94 ft in (1200 mm) |
| Height W/ Rails | 9.72 ft in (2960 mm) |
| Ground Clearance | 5.83 in (148 mm) |
| Height W/O Rails | 7.68 ft in (2340 mm) |
Platform
| Max Platform Height | 38.39 ft in (11700 mm) |
| Deck Extension | 59.06 in (1500 mm) |
| Max Working Height | 44.95 ft in (13700 mm) |
| Max Platform Weight Capacity | 2204.63 lb (1000 kg) |
| Lower Time | 40 sec |
| Platform Inner Length | 133.08 in (3380 mm) |
| Platform Inner Width | 45.67 in (1160 mm) |
| Lift Time | 65 sec |
Engine
| Engine Make | 0 |
| System Voltage | 48 V |
| Battery Amp Hours | 420 |
Operational
| Operating Weight | 15432.4 lb (7000 kg) |
| Max Speed | 1.3 mph (2 km/h) |
| Tire Size | 22x9x16 |
