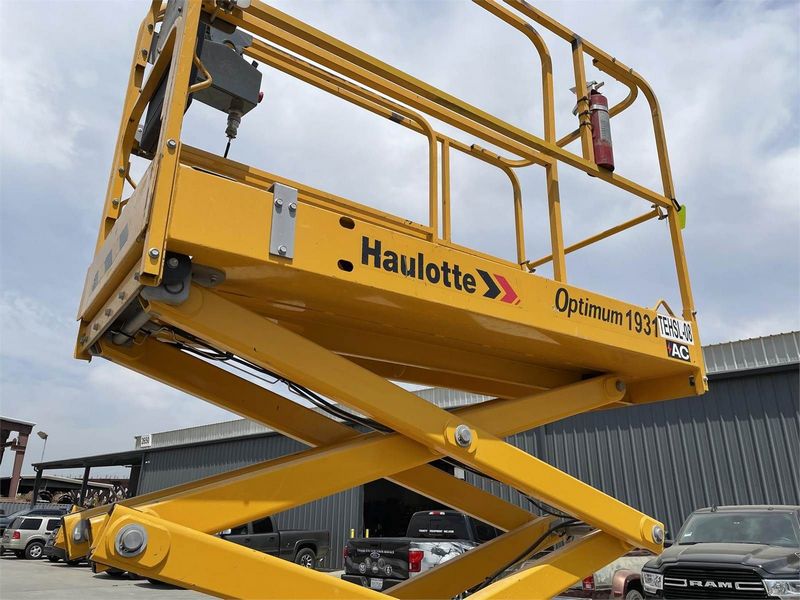

Haulotte OPTIMUM 1931 AC
Browse All Haulotte or Scissor Lift Models
Contents:
Dimensions
| Overall Length | 6.3 in (160.03 mm) |
| Wheelbase | 4.6 ft in (1402.08 mm) |
| Overall Width | 2.7 ft in (822.96 mm) |
| Height W/ Rails | 6.6 ft in (2011.68 mm) |
| Ground Clearance | 4 in (101.6 mm) |
| Gradeability | 25 % |
| Turning Radius | 4.12 ft in (1252.73 mm) |
Platform
| Max Platform Height | 18.11 ft in (5519.93 mm) |
| Deck Extension | 32 in (812.8 mm) |
| Max Working Height | 24.11 ft in (7348.73 mm) |
| Max Platform Weight Capacity | 500 lb (226.8 kg) |
| Platform Inner Length | 68 in (1727.2 mm) |
| Platform Inner Width | 29 in (736.6 mm) |
| Lower Time | 29 sec |
| Lift Time | 20 sec |
Engine
| System Voltage | 24 V |
| Battery Amp Hours | 225 |
Operational
| Operating Weight | 2800 lb (1270.1 kg) |
| Hydraulic System Fluid Capacity | 1.8 gal (6.9 L) |
| Max Speed | 2.8 mph (4.6 km/h) |
| Tire Size | 12.5 x 4.13 |
