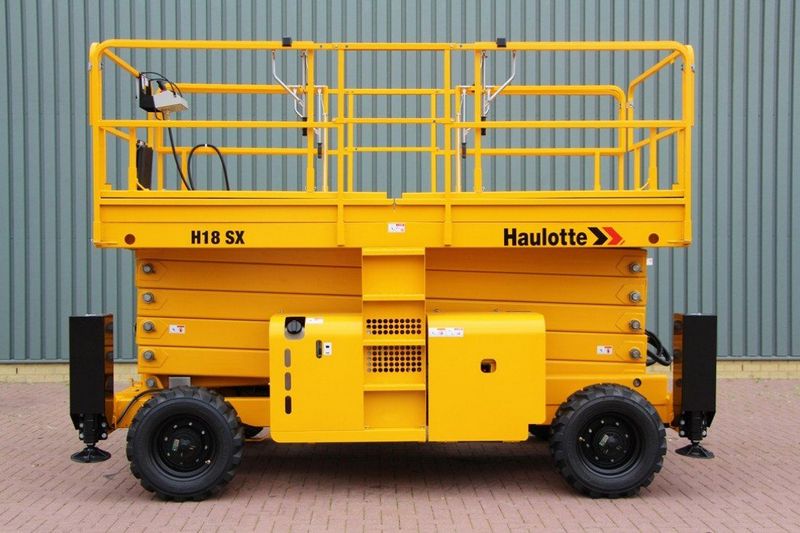

Haulotte H18SX
Browse All Haulotte or Scissor Lift Models
Contents:
Dimensions
| Overall Length | 13.72 in (4180 mm) |
| Wheelbase | 9.03 ft in (2750 mm) |
| Overall Width | 7.39 ft in (2250 mm) |
| Height W/ Rails | 9.72 ft in (2960 mm) |
| Ground Clearance | 10.63 in (270 mm) |
| Height W/O Rails | 6.93 ft in (2110 mm) |
| Turning Radius | 19.36 ft in (5900 mm) |
Platform
| Max Platform Height | 52.5 ft in (16000 mm) |
| Deck Extension | 39.38 in (1000 mm) |
| Max Working Height | 59.06 ft in (18000 mm) |
| Max Platform Weight Capacity | 1102.32 lb (500 kg) |
| Platform Inner Length | 153.94 in (3910 mm) |
| Platform Inner Width | 71.26 in (1810 mm) |
| Lower Time | 60 sec |
| Lift Time | 60 sec |
Engine
| Gross Power | 32.2 hp (24 kw) |
| Fuel Type | diesel |
Operational
| Operating Weight | 16093.8 lb (7300 kg) |
| Fuel Capacity | 17.2 gal (65 L) |
| Hydraulic System Fluid Capacity | 26.5 gal (100 L) |
| Max Speed | 3.8 mph (6 km/h) |
| Tire Size | 10 x 16.5 |
| Tire Fill/Type | foam filled |
