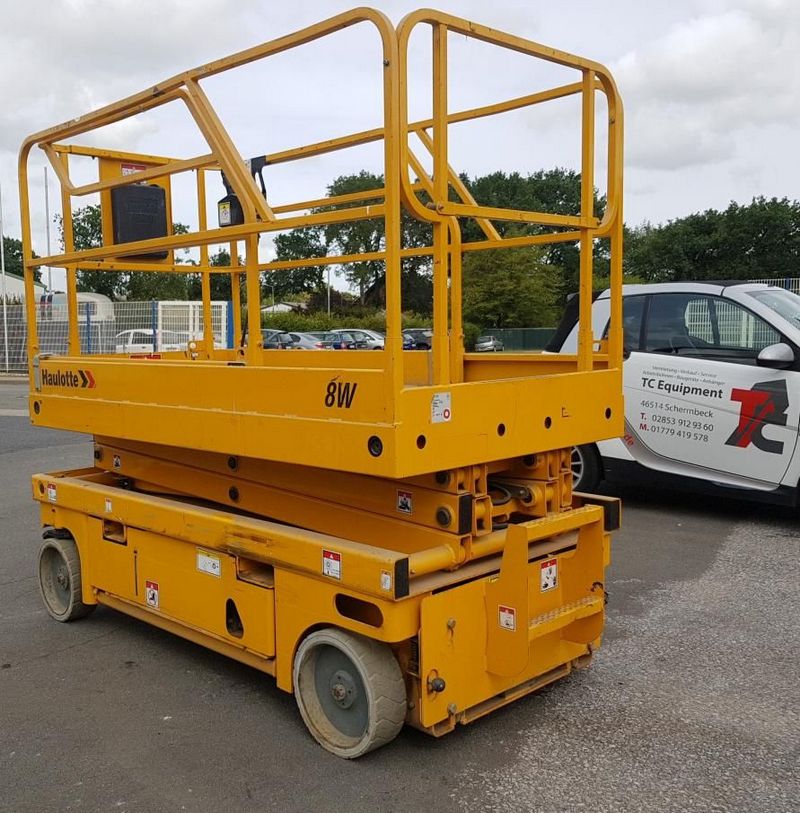

Haulotte Compact 8W
Browse All Haulotte or Scissor Lift Models
Contents:
Dimensions
| Overall Length | 7.58 in (2310 mm) |
| Wheelbase | 6.11 ft in (1860 mm) |
| Overall Width | 3.94 ft in (1200 mm) |
| Height W/ Rails | 7.03 ft in (2140 mm) |
| Ground Clearance | 5.12 in (130 mm) |
| Height W/O Rails | 3.35 ft in (1020 mm) |
| Turning Radius | 8.21 ft in (2500 mm) |
Platform
| Max Platform Height | 20.58 ft in (6270 mm) |
| Deck Extension | 36.23 in (920 mm) |
| Max Working Height | 27.14 ft in (8270 mm) |
| Max Platform Weight Capacity | 992.09 lb (450 kg) |
| Platform Inner Length | 90.56 in (2300 mm) |
| Platform Inner Width | 47.25 in (1200 mm) |
| Lower Time | 56 sec |
| Lift Time | 44 sec |
Engine
| System Voltage | 24 V |
| Number Of Batteries | 4.0000 |
| Battery Amp Hours | 250.0000 |
| Charger Amps | 30 amps |
Operational
| Operating Weight | 4299.1 lb (1950 kg) |
| Max Speed | 2.2 mph (3.6 km/h) |
| Tire Size | 15 x 5 x 2 |
| Tire Fill/Type | solid/non marking |
