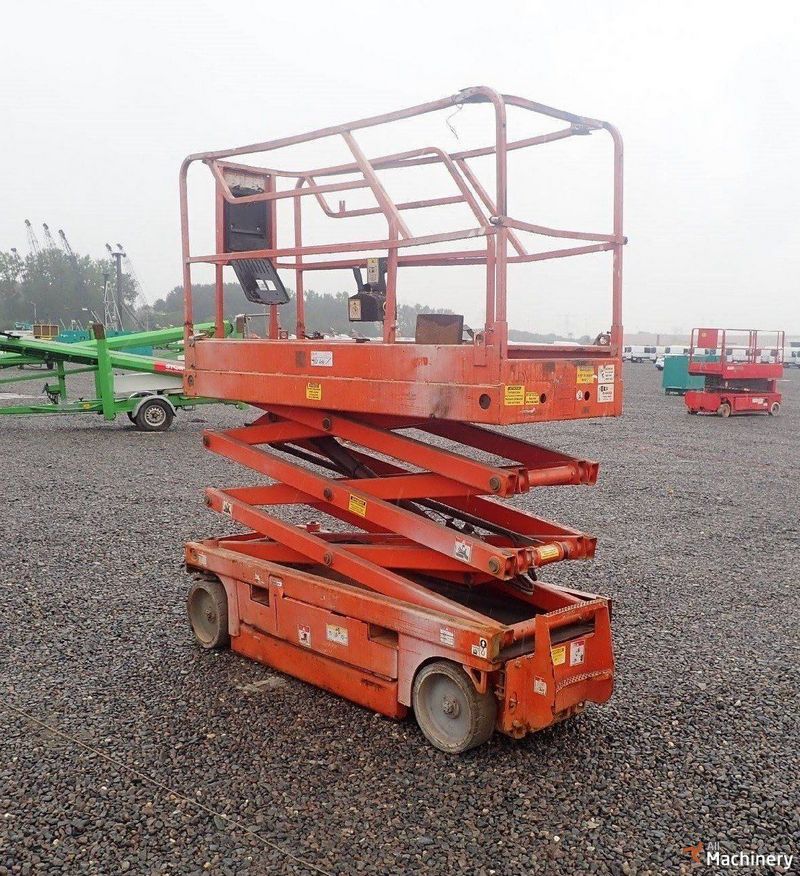

Haulotte Compact 8 DX
Browse All Haulotte or Scissor Lift Models
Contents:
Dimensions
| Overall Length | 8.7 in (2650 mm) |
| Wheelbase | 6.14 ft in (1870 mm) |
| Overall Width | 5.91 ft in (1800 mm) |
| Height W/ Rails | 7.55 ft in (2300 mm) |
| Ground Clearance | 9.85 in (250 mm) |
| Height W/O Rails | 3.94 ft in (1200 mm) |
| Turning Radius | 12.24 ft in (3730 mm) |
Platform
| Max Platform Height | 21 ft in (6400 mm) |
| Deck Extension | 47.25 in (1200 mm) |
| Max Working Height | 27.56 ft in (8400 mm) |
| Max Platform Weight Capacity | 1245.62 lb (565 kg) |
| Platform Inner Length | 98.43 in (2500 mm) |
| Platform Inner Width | 60.63 in (1540 mm) |
| Lower Time | 35 sec |
| Lift Time | 30 sec |
Engine
| Engine Make | 2349 |
| Gross Power | 24.1 hp (17.9 kw) |
| Fuel Type | diesel |
Operational
| Operating Weight | 6878.5 lb (3120 kg) |
| Fuel Capacity | 8 gal (30 L) |
| Hydraulic System Fluid Capacity | 21.2 gal (80 L) |
| Max Speed | 3.5 mph (5.5 km/h) |
| Tire Size | 26x12-12 |
| Tire Fill/Type | foam filled |
