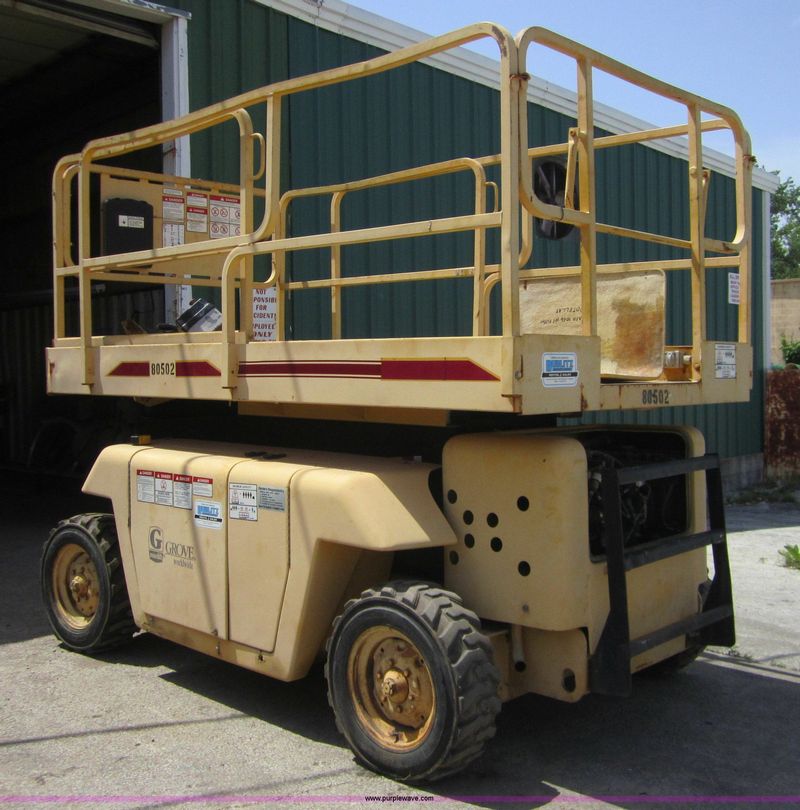

Grove SM3269XT
Browse All Grove or Scissor Lift Models
Contents:
Dimensions
| Overall Length | 10.5 in (3200 mm) |
| Wheelbase | 6.89 ft in (2100 mm) |
| Overall Width | 5.91 ft in (1800 mm) |
| Height W/ Rails | 7.88 ft in (2400 mm) |
| Ground Clearance | 0.79 in (20 mm) |
| Height W/O Rails | 4.27 ft in (1300 mm) |
| Turning Radius | 7.55 ft in (2300 mm) |
Platform
| Max Platform Height | 26.25 ft in (8000 mm) |
| Deck Extension | 35.44 in (900 mm) |
| Height Of Rails | 3.61 ft in (1100 mm) |
| Max Platform Weight Capacity | 1250.03 lb (567 kg) |
| Lower Time | 25 sec |
| Max Working Height | 32.16 ft in (9800 mm) |
| Platform Inner Width | 63.78 in (1620 mm) |
| Lift Time | 25 sec |
| Platform Inner Length | 120.08 in (3050 mm) |
Engine
| Engine Make | 2334 |
| Engine Model | WG750 Dual Fuel |
| Gross Power | 20 hp (15 kw) |
Operational
| Operating Weight | 6400.1 lb (2903 kg) |
| Fuel Capacity | 13 gal (49.2 L) |
| Hydraulic System Fluid Capacity | 14.1 gal (53 L) |
| Max Speed | 3 mph (4.8 km/h) |
| Tire Size | 27x8.5-15 |
| Tire Fill/Type | Air |
