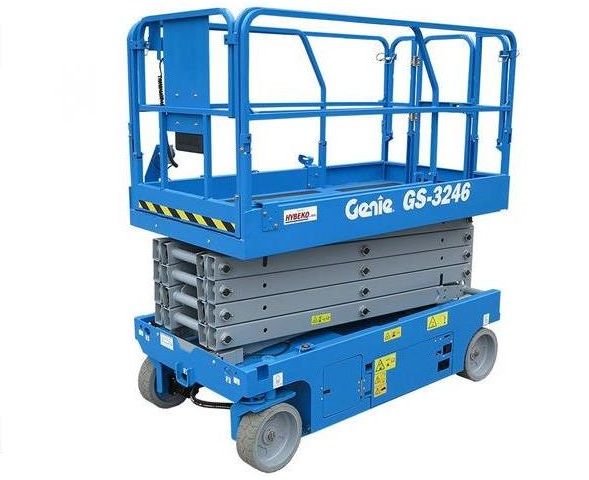

Genie GS3246
Browse All Genie or Scissor Lift Models
Contents:
Dimensions
| Overall Length | 7.91 in (2410 mm) |
| Wheelbase | 6.07 ft in (1850 mm) |
| Overall Width | 3.84 ft in (1170 mm) |
| Height W/ Rails | 7.85 ft in (2390 mm) |
| Ground Clearance | 3.94 in (100 mm) |
| Height W/O Rails | 5.91 ft in (1800 mm) |
| Turning Radius | 7.52 ft in (2290 mm) |
Platform
| Max Platform Height | 31.99 ft in (9750 mm) |
| Deck Extension | 35.83 in (910 mm) |
| Max Working Height | 38.55 ft in (11750 mm) |
| Max Platform Weight Capacity | 701.07 lb (318 kg) |
| Platform Inner Length | 88.98 in (2260 mm) |
| Platform Inner Width | 45.28 in (1150 mm) |
| Lower Time | 35 sec |
| Lift Time | 57 sec |
Engine
| System Voltage | 24 V |
| Number Of Batteries | 4 |
Operational
| Operating Weight | 5211.8 lb (2364 kg) |
| Hydraulic System Fluid Capacity | 4.5 gal (17 L) |
| Max Speed | 2.2 mph (3.5 km/h) |
| Tire Size | 15x5x11 |
| Tire Fill/Type | Solid non-marking |
