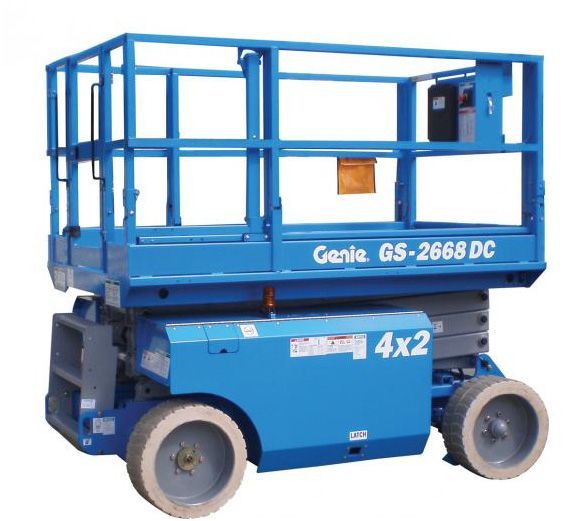

Genie GS2668DC
Browse All Genie or Scissor Lift Models
Contents:
Dimensions
| Overall Length | 8.76 in (2670 mm) |
| Wheelbase | 6.07 ft in (1850 mm) |
| Overall Width | 5.68 ft in (1730 mm) |
| Height W/ Rails | 7.62 ft in (2320 mm) |
| Ground Clearance | 7.49 in (190 mm) |
| Height W/O Rails | 5.58 ft in (1700 mm) |
| Turning Radius | 12.08 ft in (3680 mm) |
Platform
| Max Platform Height | 25.99 ft in (7920 mm) |
| Deck Extension | 59.85 in (1520 mm) |
| Max Working Height | 32.55 ft in (9920 mm) |
| Max Platform Weight Capacity | 1250.03 lb (567 kg) |
| Platform Inner Length | 98.82 in (2510 mm) |
| Platform Inner Width | 61.03 in (1550 mm) |
| Lower Time | 35 sec |
| Lift Time | 30 sec |
Engine
| System Voltage | 24 V |
| Number Of Batteries | 4 |
Operational
| Operating Weight | 6404.5 lb (2905 kg) |
| Hydraulic System Fluid Capacity | 9.6 gal (36 L) |
| Max Speed | 3 mph (4.8 km/h) |
| Tire Size | 12.5x22 |
| Tire Fill/Type | Solid non-marking |
