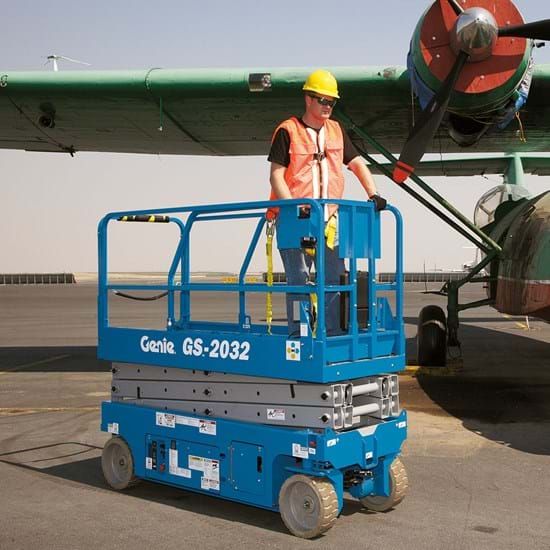

Genie GS2032
Browse All Genie or Scissor Lift Models
Contents:
Dimensions
| Overall Length | 8.01 in (2440 mm) |
| Wheelbase | 6.07 ft in (1850 mm) |
| Overall Width | 2.66 ft in (810 mm) |
| Height W/ Rails | 6.67 ft in (2030 mm) |
| Ground Clearance | 3.55 in (90 mm) |
| Height W/O Rails | 5.75 ft in (1750 mm) |
| Turning Radius | 6.99 ft in (2130 mm) |
Platform
| Max Platform Height | 20.02 ft in (6100 mm) |
| Deck Extension | 35.83 in (910 mm) |
| Max Working Height | 26.58 ft in (8100 mm) |
| Max Platform Weight Capacity | 800.28 lb (363 kg) |
| Platform Inner Length | 88.98 in (2260 mm) |
| Platform Inner Width | 31.89 in (810 mm) |
| Lower Time | 34 sec |
| Lift Time | 30 sec |
Engine
| System Voltage | 24 V |
| Number Of Batteries | 4 |
Operational
| Operating Weight | 3573.7 lb (1621 kg) |
| Hydraulic System Fluid Capacity | 3.8 gal (14.2 L) |
| Max Speed | 2.2 mph (3.5 km/h) |
| Tire Size | 15x5x11 |
| Tire Fill/Type | Solid non-marking |
