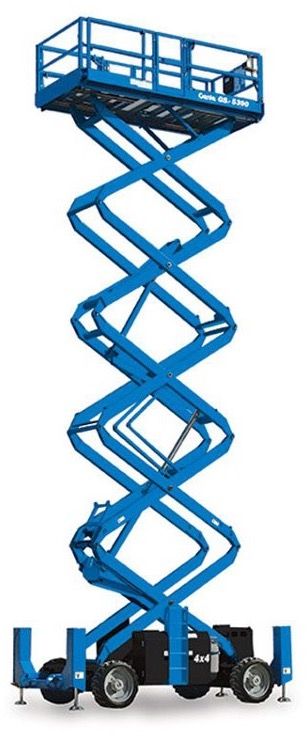

Auslift 43ft Diesel
Browse All Auslift or Scissor Lift Models
Contents:
Dimensions
| Overall Length | 13.5 in (4114.8 mm) |
| Wheelbase | 8.92 ft in (2718.82 mm) |
| Overall Width | 7.33 ft in (2234.19 mm) |
| Height W/ Rails | 9.67 ft in (2947.42 mm) |
| Ground Clearance | 14 in (355.6 mm) |
| Height W/O Rails | 6.92 ft in (2109.22 mm) |
| Turning Radius | 15.67 ft in (4776.22 mm) |
Platform
| Max Platform Height | 42.58 ft in (12978.39 mm) |
| Deck Extension | 3.25 in (82.55 mm) |
| Platform Inner Length | 194 in (4927.61 mm) |
| Platform Inner Width | 71 in (1803.4 mm) |
| Max Working Height | 48.58 ft in (14807.19 mm) |
| Max Platform Weight Capacity | 1543 lb (699.9 kg) |
Engine
| Gross Power | 32 hp (23.9 kw) |
| Fuel Type | Diesel |
Operational
| Operating Weight | 13560 lb (6150.8 kg) |
| Fuel Capacity | 17 gal (64.4 L) |
| Hydraulic System Fluid Capacity | 26 gal (98.5 L) |
| Max Speed | 3.7 mph (6 km/h) |
| Tire Size | 10x16.5 |
| Tire Fill/Type | Foam |
