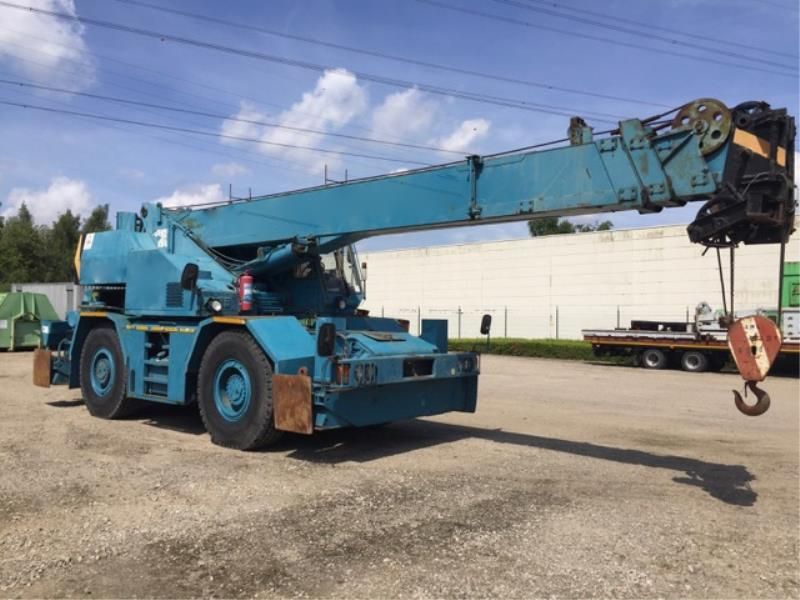

Tadano TR300E
Browse All Tadano or Rough Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 29.2 ft in (8.9 m) |
| Max Height @ Max Raise Angle - No Jib | 92.2 ft in (28.1 m) |
| Max Elevating Angle | 80 degrees |
| Swing Speed | 3.2 rpm |
| Number Of Sections | 4 |
Dimensions
| Transport Length | 35.8 ft in (10910 mm) |
| Transport Width | 8.6 ft in (2620 mm) |
| Transport Height | 11.67 ft in (3555 mm) |
| Wheelbase | 125.99 in (3200 mm) |
| Ground Clearance | 1.21 ft in (366 mm) |
| Width W/ Outriggers Extended | 22.58 ft in (6880 mm) |
| Carrier/Base Length | 23425.2 ft in (7140 m) |
| Upper Structure Tail Swing Radius | 11.36 ft in (3460 mm) |
Engine
| Fuel Filter | Fullflow with replacement |
| Radiator Core Type | Fin and tube core, thermostat controoled |
| Number Of Cylinders | 6 |
| Engine Make | Mitsubishi |
| Engine Model | 6D22 |
| Engine Type | Direct Injection Diesel |
| Gross Power | 186.5 hp (139 kw) |
| Cooling System | Liquid pressurized, recirculating by-pass |
| Air Cleaner | Dry type, replacement element |
| Net Power | 179.7 hp (134 kw) |
| Power Measured @ | 2300 rpm |
| Max Torque | 463 lb ft (627.8 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 680 cu in (11.2 L) |
| Bore | 5.2 in (130 mm) |
| Stroke | 5.6 in (140 mm) |
| Oil Filter | Fullflow with replacement |
| Aspiration | Naturally aspirated |
Operational
| Operating Weight | 57518.7 lb (26090 kg) |
| Fuel Capacity | 79.3 gal (300 L) |
| Hydraulic System Fluid Capacity | 111.3 gal (421 L) |
| Operating Voltage | 24 V |
| Tire Size | 16.00 x 25 |
Transmission
| Transmission Type | Full powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 1 |
| Max Speed - Forward | 19.4 mph (31.2 km/h) |
