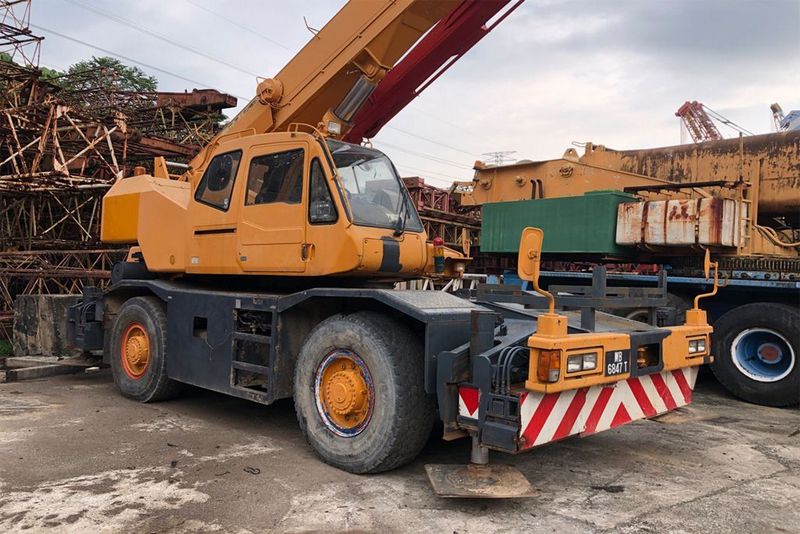

Tadano TR250M-6
Browse All Tadano or Rough Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 31.17 ft in (9.5 m) |
| Max Height @ Max Raise Angle - No Jib | 100.07 ft in (30.5 m) |
| Max Elevating Angle | 83 degrees |
| Number Of Sections | 4 |
| Swing Speed | 2.6 rpm |
Dimensions
| Transport Length | 36.52 ft in (11130 mm) |
| Transport Width | 8.6 ft in (2620 mm) |
| Transport Height | 11.19 ft in (3410 mm) |
| Wheelbase | 137.8 in (3500 mm) |
| Width W/ Outriggers Extended | 20.67 ft in (6300 mm) |
| Carrier/Base Length | 24114.18 ft in (7350 m) |
| Upper Structure Tail Swing Radius | 10.18 ft in (3100 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | Mitsubishi |
| Engine Model | 6D16 |
| Gross Power | 246.6 hp (183.9 kw) |
| Power Measured @ | 2800 rpm |
| Max Torque | 520.8 lb ft (706.1 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 460.5 cu in (7.6 L) |
| Aspiration | Water-cooled |
Operational
| Operating Weight | 58411.5 lb (26495 kg) |
| Fuel Capacity | 79.3 gal (300 L) |
| Hydraulic System Fluid Capacity | 100.4 gal (380 L) |
| Operating Voltage | 24 V |
| Tire Size | 385/95R25 |
Transmission
| Transmission Type | Powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 1 |
| Max Speed - Forward | 30.5 mph (49 km/h) |
