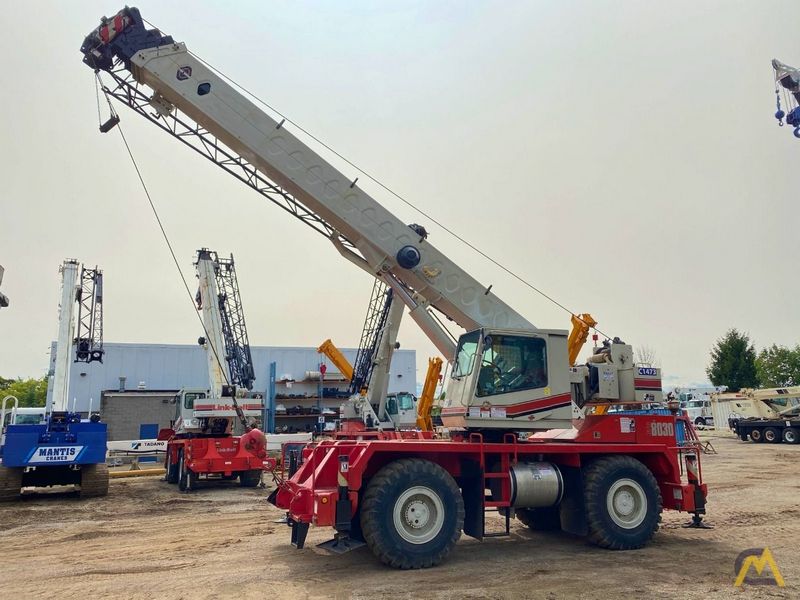

Link-Belt RTC8030 Series II
Browse All Link-Belt or Rough Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 37 ft in (11.28 m) |
| Max Height @ Max Raise Angle - No Jib | 100.4 ft in (30.6 m) |
| Min Operating Radius | 10 ft in (3.05 m) |
| Max Elevating Angle | 78 degrees |
| Max Operating Radius | 85 ft in (25.91 m) |
| Number Of Sections | 4 |
| Max Lift Capacity | 60000 lb (27215.55 kg) |
| Swing Speed | 2.8 rpm |
Dimensions
| Transport Length | 38.13 ft in (11620 mm) |
| Transport Width | 8.5 ft in (2590 mm) |
| Transport Height | 11.06 ft in (3370 mm) |
| Wheelbase | 11.42 in (3480 mm) |
| Ground Clearance | 0.66 ft in (200 mm) |
| Width W/ Outriggers Extended | 19.49 ft in (5940 mm) |
| Carrier/Base Length | 22.61 ft in (6890 m) |
| Upper Structure Tail Swing Radius | 9.98 ft in (3040 mm) |
Engine
| Engine Make | 2236 |
| Engine Model | C6.6 |
| Gross Power | 156 hp (116.4 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 504 lb ft (683.4 Nm) |
| Torque Measured @ | 1500 rpm |
| Displacement | 402.8 cu in (6.6 L) |
Operational
| Operating Weight | 55526 lb (25186.2 kg) |
| Fuel Capacity | 75 gal (283.9 L) |
| Hydraulic System Fluid Capacity | 80.1 gal (303 L) |
| Engine Oil Capacity | 4.6 gal (17.4 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 150 amps |
| Tire Size | 20.5R25 |
Transmission
| Transmission Type | powershift |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 25.5 mph (40.9 km/h) |
| Max Speed - Reverse | 4.2 mph (6.8 km/h) |
