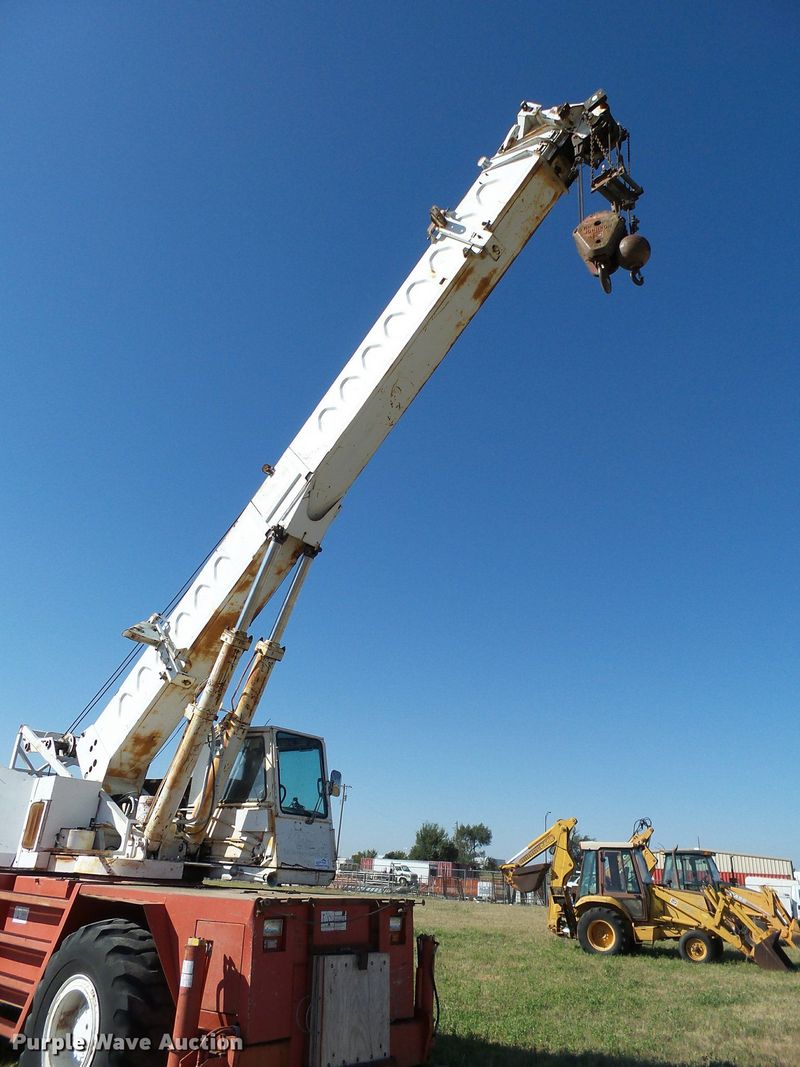

Link-Belt HSP-22
Browse All Link-Belt or Rough Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 28.52 ft in (8.69 m) |
| Max Height @ Max Raise Angle - No Jib | 70.02 ft in (21.34 m) |
| Swing Speed | 3 rpm |
| Number Of Sections | 3 |
Dimensions
| Transport Length | 37.96 ft in (11570 mm) |
| Transport Width | 7.98 ft in (2430 mm) |
| Transport Height | 10.96 ft in (3340 mm) |
| Wheelbase | 120.87 in (3070 mm) |
| Ground Clearance | 0.83 ft in (250 mm) |
| Width W/ Outriggers Extended | 18.57 ft in (5660 mm) |
| Carrier/Base Length | 21.72 ft in (6.62 m) |
| Upper Structure Tail Swing Radius | 10.67 ft in (3250 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | General Motors |
| Engine Model | 4-53 |
| Gross Power | 136 hp (101.5 kw) |
| Power Measured @ | 2800 rpm |
| Max Torque | 282 lb ft (382.4 Nm) |
| Torque Measured @ | 1800 rpm |
| Displacement | 212 cu in (3.5 L) |
| Bore | 3.9 in (98.5 mm) |
| Stroke | 4.5 in (114.3 mm) |
| Crankcase Capacity | 13.25 L |
Operational
| Fuel Capacity | 68 gal (257.5 L) |
| Hydraulic System Fluid Capacity | 101 gal (382.4 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 42 amps |
| Tire Size | 17.5 x 25 |
Transmission
| Transmission Type | Allison TT-2221-1 Powershift |
| Max Speed - Forward | 22 mph (35.4 km/h) |
| Max Speed - Reverse | 8.1 mph (12.9 km/h) |
