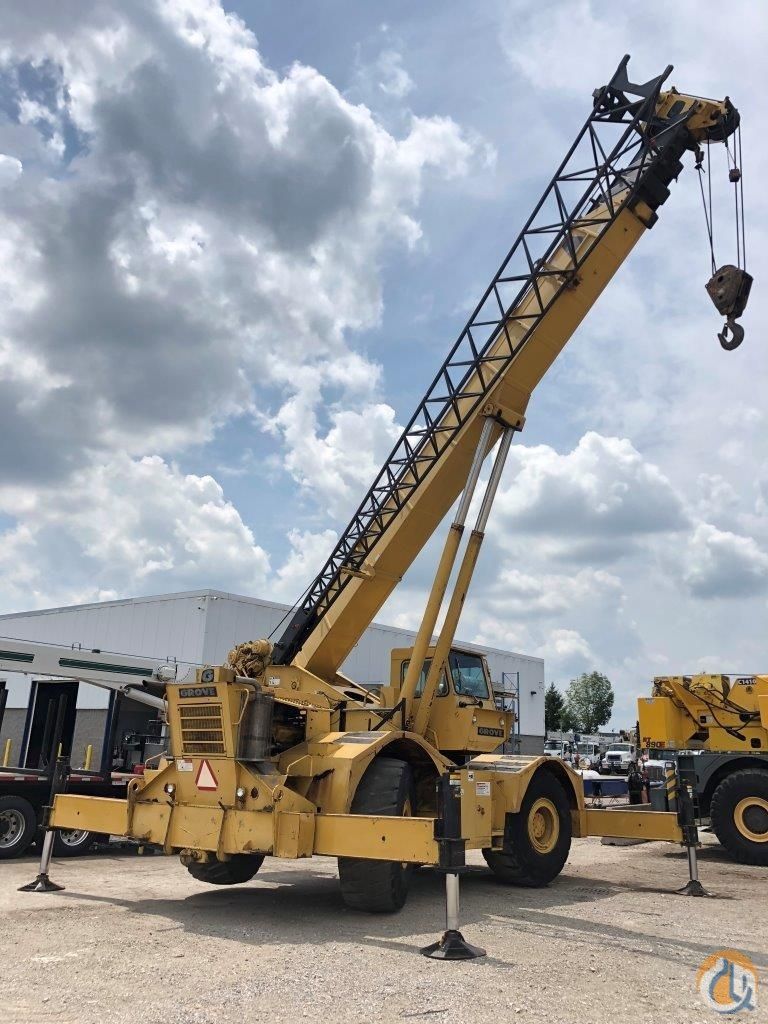

Grove RT65S
Browse All Grove or Rough Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 33 ft in (10.06 m) |
| Max Height @ Max Raise Angle - No Jib | 112 ft in (34.14 m) |
| Min Operating Radius | 3 ft in (0.92 m) |
| Max Elevating Angle | 76 degrees |
| Max Operating Radius | 26 ft in (7.93 m) |
| Number Of Sections | 4 |
| Max Lift Capacity | 30000 lb (13607.78 kg) |
| Swing Speed | 2.6 rpm |
Dimensions
| Transport Length | 41.18 ft in (12550 mm) |
| Transport Width | 10.24 ft in (3120 mm) |
| Transport Height | 11.85 ft in (3610 mm) |
| Wheelbase | 12.5 in (3810 mm) |
| Ground Clearance | 1.59 ft in (483 mm) |
| Width W/ Outriggers Extended | 23 ft in (7010 mm) |
| Carrier/Base Length | 36.26 ft in (11050 m) |
| Upper Structure Tail Swing Radius | 13.49 ft in (4110 mm) |
Engine
| Engine Make | 2350 |
| Engine Model | 6V-53N |
| Air Cleaner | Full Flow |
| Net Power | 173 hp (129.1 kw) |
| Power Measured @ | 2500 rpm |
| Max Torque | 396 lb ft (537 Nm) |
| Torque Measured @ | 1500 rpm |
| Displacement | 318 cu in (5.3 L) |
Operational
| Operating Weight | 67250 lb (30504.1 kg) |
| Fuel Capacity | 60 gal (227.2 L) |
| Hydraulic System Fluid Capacity | 133 gal (503.5 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 60 amps |
| Tire Size | 21.00X25-24ply |
Transmission
| Transmission Type | remote mounted full powershift |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 6 |
| Max Speed - Forward | 21.8 mph (35.1 km/h) |
