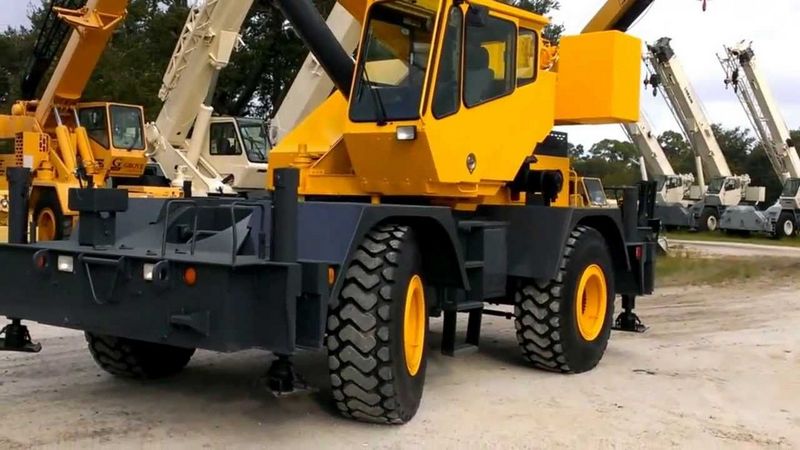

Grove RT530DXL
Browse All Grove or Rough Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 32.16 ft in (9.81 m) |
| Max Height @ Max Raise Angle - No Jib | 89.9 ft in (27.4 m) |
| Min Operating Radius | 9.85 ft in (3 m) |
| Max Elevating Angle | 78 degrees |
| Max Operating Radius | 91.87 ft in (28 m) |
| Swing Speed | 3 rpm |
| Max Lift Capacity | 66138.68 lb (30000 kg) |
| Number Of Sections | 4 |
Dimensions
| Transport Length | 3.84 ft in (1168 mm) |
| Transport Width | 9.84 ft in (2997 mm) |
| Transport Height | 11.45 ft in (3488 mm) |
| Wheelbase | 11.09 in (3378 mm) |
| Width W/ Outriggers Extended | 20 ft in (6096 mm) |
| Carrier/Base Length | 22.42 ft in (6833 m) |
| Upper Structure Tail Swing Radius | 11.17 ft in (3404 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | Cummins |
| Engine Model | 6BT5.9L |
| Gross Power | 144.9 hp (108 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 399.8 lb ft (542 Nm) |
| Torque Measured @ | 1600 rpm |
| Displacement | 360.1 cu in (5.9 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 61288.6 lb (27800 kg) |
| Fuel Capacity | 60 gal (227 L) |
| Hydraulic System Fluid Capacity | 120 gal (454 L) |
| Operating Voltage | 24 V |
| Tire Size | 20.5R25 |
Transmission
| Transmission Type | Funk powershift DF 150 |
| Number Of Forward Gears | 8 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 24.3 mph (39 km/h) |
| Max Speed - Reverse | 7.1 mph (11.3 km/h) |
