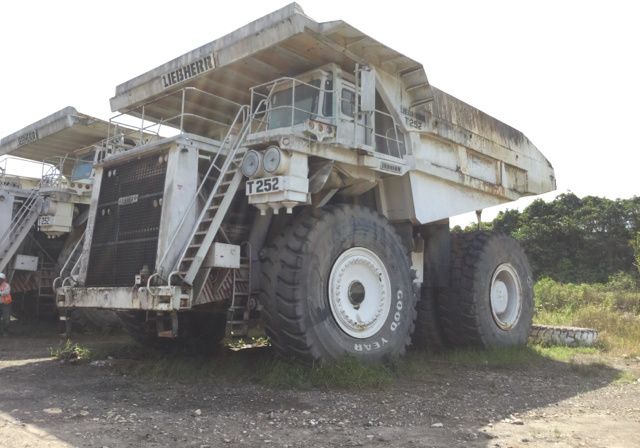

Liebherr T252
Browse All Liebherr or Rock Truck Models
Contents:
Dimensions
| Overall Length | 43.64 ft in (13300 mm) |
| Overall Width | 24.61 ft in (7500 mm) |
| Overall Height | 21 ft in (6400 mm) |
| Wheelbase | 19.03 ft in (5800 mm) |
| Dump Height | 18.38 ft in (5600 mm) |
Dump
| Dump Angle | 50 degrees |
| Lower Time | 9 sec |
| Load Capacity - Struck | 100.06 yd3 (76.5 m3) |
| Load Capacity - Heaped | 141 yd3 (107.8 m3) |
| Raise Time | 20 sec |
Engine
| Engine Model | DDC/MTU 12V4000 |
| Gross Power | 2025 hp (1510 kw) |
Operational
| Fuel Capacity | 829.6 gal (3140 L) |
| Steering System Fluid Capacity | 134.8 gal (510 L) |
| Brake/Hoist System Fluid Capacity | 244.9 gal (927 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 75 amps |
| Tire Size | 37 R57 |
Transmission
| Max Speed | 32 mph (51.5 km/h) |
Weights
| Empty Weight | 326989.7 lb (148320 kg) |
| Loaded Weight | 729994.7 lb (331120 kg) |
