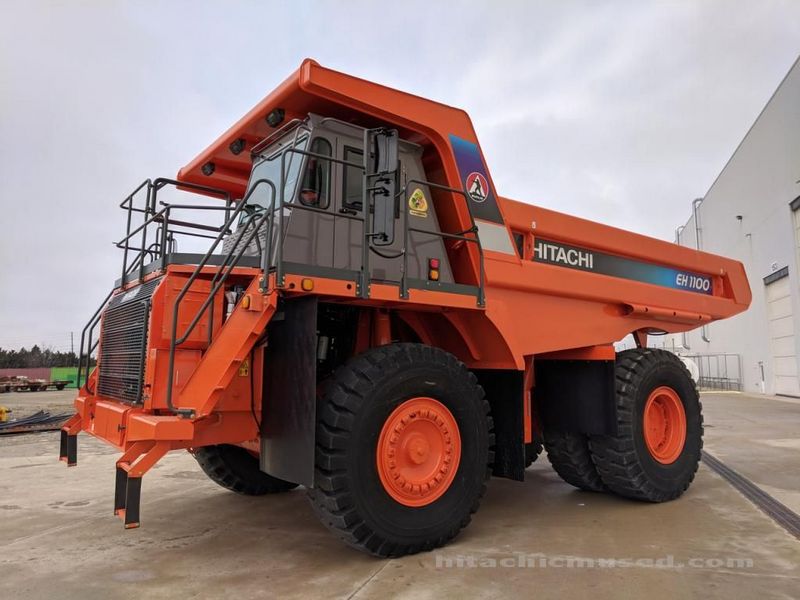

Hitachi EH1100-3
Browse All Hitachi or Rock Truck Models
Contents:
Dimensions
| Overall Length | 31.01 ft in (9450 mm) |
| Overall Width | 16.34 ft in (4980 mm) |
| Overall Height | 15.16 ft in (4620 mm) |
| Wheelbase | 14.18 ft in (4320 mm) |
| Ground Clearance | 2.01 ft in (610 mm) |
| Dump Height | 29.17 ft in (8890 mm) |
| Dump Ground Clearance | 2.43 ft in (740 mm) |
Dump
| Dump Angle | 60 degrees |
| Load Capacity - Struck | 36.89 yd3 (28.2 m3) |
| Load Capacity - Heaped | 50.62 yd3 (38.71 m3) |
| Rated Payload | 144000 lb (65317.31 kg) |
| Lower Time | 16 sec |
| Raise Time | 12 sec |
Engine
| Number Of Cylinders | 12 |
| Engine Make | 2350 |
| Engine Model | MTU 12 V-2000 |
| Net Power | 698 hp (520 kw) |
| Gross Power | 760 hp (567 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 2280 lb ft (3091.3 Nm) |
| Displacement | 1458.5 cu in (23.9 L) |
| Aspiration | Turbocharged/Aftercooled |
| Torque Measured @ | 1350 rpm |
Operational
| Fuel Capacity | 185 gal (700 L) |
| Cooling System Fluid Capacity | 59.4 gal (224.5 L) |
| Engine Oil Capacity | 22.1 gal (83.3 L) |
| Diff And Final Drive Fluid Capacity | 27.3 gal (103 L) |
| Steering System Fluid Capacity | 29.6 gal (112 L) |
| Brake/Hoist System Fluid Capacity | 67.7 gal (256 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 75 amps |
| Tire Size | 24.00R35 |
Transmission
| Transmission Type | Allison H6610A. Fully automatic, planetary type with integral lock up converter |
| Number Of Gears - Forward | 6 |
| Number Of Gears - Reverse | 2 |
| Max Speed | 36 mph (57.9 km/h) |
Weights
| Empty Weight | 101000.4 lb (45813 kg) |
| Loaded Weight | 244001.1 lb (110677 kg) |
| Weight Distribution Front - Empty | 50 % |
| Weight Distribution Rear - Empty | 50 % |
| Weight Distribution Front - Loaded | 34 % |
| Weight Distribution Rear - Loaded | 66 % |
