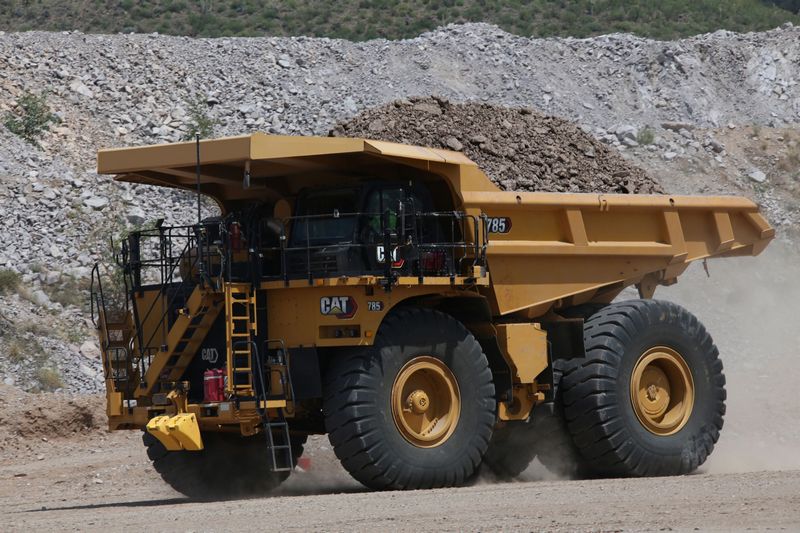

Caterpillar 785
Browse All Caterpillar or Rock Truck Models
Contents:
Dimensions
| Overall Length | 36.16 ft in (11020 mm) |
| Overall Width | 21.76 ft in (6630 mm) |
| Overall Height | 18.94 ft in (5770 mm) |
| Wheelbase | 17 ft in (5180 mm) |
| Dump Height | 36.75 ft in (11200 mm) |
Dump
| Load Capacity - Struck | 74.56 yd3 (57 m3) |
| Load Capacity - Heaped | 102.03 yd3 (78 m3) |
| Rated Payload | 300000 lb (136077.72 kg) |
Engine
| Engine Make | 2236 |
| Engine Model | 3512 |
| Gross Power | 1380 hp (1029 kw) |
| Net Power | 1290.1 hp (962 kw) |
| Displacement | 3161.1 cu in (51.8 L) |
Operational
| Fuel Capacity | 500.1 gal (1893 L) |
| Tire Size | 33.00-51 50PR (E-4) |
Transmission
| Number Of Gears - Forward | 6 |
| Max Speed | 34.8 mph (56 km/h) |
Weights
| Empty Weight | 212422.1 lb (96353 kg) |
| Loaded Weight | 549905.7 lb (249433 kg) |
| Weight Distribution Front - Empty | 47 % |
| Weight Distribution Rear - Empty | 53 % |
| Weight Distribution Front - Loaded | 33 % |
| Weight Distribution Rear - Loaded | 67 % |
