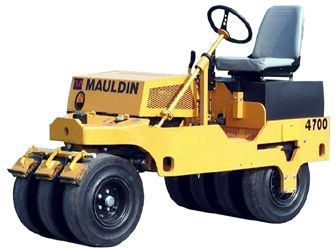

Mauldin 4700
Browse All Mauldin or Pneumatic Roller Models
Contents:
Dimensions
| Overall Length | 6.92 in (2109.22 mm) |
| Overall Width | 3.25 ft in (990.6 mm) |
| Height To Top Of Rops | 4.92 ft in (1499.62 mm) |
| Wheelbase | 4.71 ft in (1435.61 mm) |
Engine
| Number Of Cylinders | 2 |
| Engine Make | 2355 |
| Net Power | 18 hp (13.5 kw) |
| Aspiration | natural |
Operational
| Fuel Capacity | 3.5 gal (13.3 L) |
| Hydraulic System Fluid Capacity | 8 gal (30.3 L) |
| Water Spray Tank Fluid Capacity | 42 gal (159 L) |
| Max Speed | 6 mph (9.7 km/h) |
| Operating Voltage | 12 V |
Weights
| Operating Weight - Standard | 3500 lb (1587.6 kg) |
Tires
| Number Of Tires - Front | 3 |
| Number Of Tires - Rear | 4 |
| Oscillation Angle | 15 degrees |
