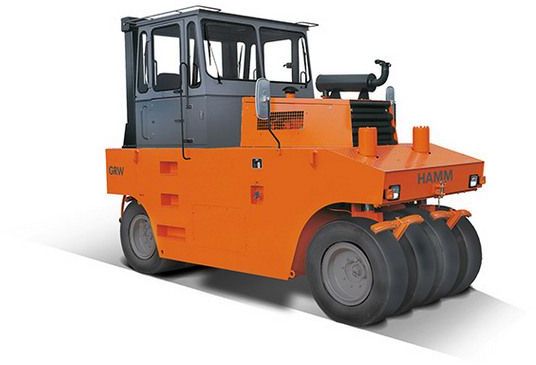

Hamm GRW21
Browse All Hamm or Pneumatic Roller Models
Contents:
Dimensions
| Overall Length | 186.82 in (4745 mm) |
| Overall Width | 7.09 ft in (2160 mm) |
| Height To Top Of Rops | 10.78 ft in (3285 mm) |
| Wheelbase | 11.8 ft in (3595 mm) |
| Ground Clearance | 1.09 ft in (330 mm) |
| Maximum Width | 6515.75 ft in (1986 m) |
| Turning Radius - Inside | 19.36 ft in (5900 mm) |
Tyres
| Size Of Tyres, Rear | 11.00-R20 |
| Width Over Tyres, Rear | 68.7 in (1744 mm) |
| Size Of Tyres, Front | 11.00-R20 |
| Width Over Tyres, Front | 68.7 in (1744 mm) |
Speeds
| Speed - Working Gear | 7.2 mph (11.5 km/h) |
| Speed - Transportation Gear | 13.2 mph (21.2 km/h) |
Engine
| Emissions Certification | EPA Tier 4 |
| Number Of Cylinders | 4 |
| Engine Make | DEUTZ |
| Engine Model | TCD 2012 L04 2V |
| Gross Power | 114 hp (85 kw) |
| Net Power | 114 hp (85 kw) |
| Power Measured @ | 2300 rpm |
Operational
| Operating Weight Cabin | 47785.2 lb (21675 kg) |
| Fuel Capacity | 52.4 gal (198 L) |
| Operating Weight | 61729.5 lb (28000 kg) |
| Water Spray Tank Fluid Capacity | 198.2 gal (750 L) |
Tires
| Number Of Tires - Front | 4 |
| Number Of Tires - Rear | 4 |
