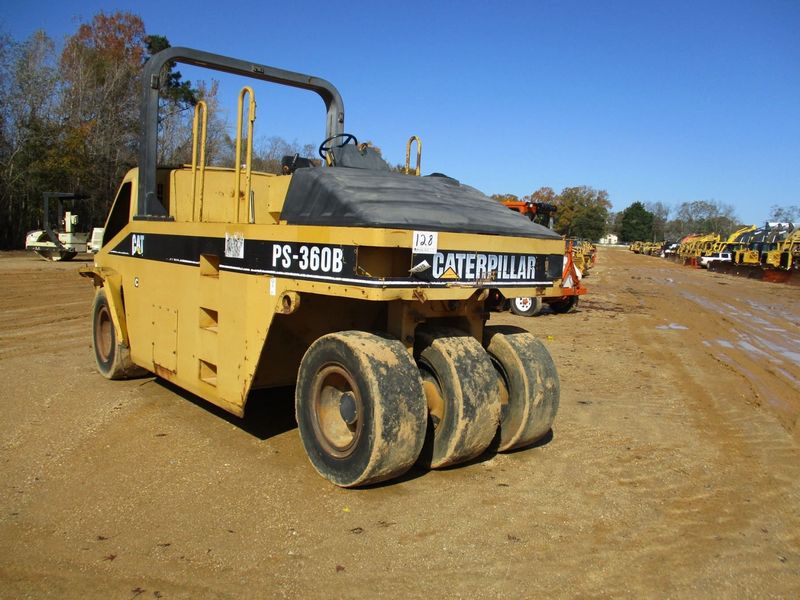

Caterpillar PS360B
Browse All Caterpillar or Pneumatic Roller Models
Contents:
Dimensions
| Overall Length | 15.92 in (4850 mm) |
| Overall Width | 7.47 ft in (2275 mm) |
| Height To Top Of Rops | 8.31 ft in (2530 mm) |
| Wheelbase | 11.98 ft in (3650 mm) |
| Ground Clearance | 0.83 ft in (252 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2236 |
| Engine Model | 3054T |
| Gross Power | 105 hp (78.3 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 243 cu in (4 L) |
| Aspiration | Turbocharged |
Operational
| Fuel Capacity | 52.9 gal (200 L) |
| Engine Oil Capacity | 2 gal (7.3 L) |
| Water Spray Tank Fluid Capacity | 104.1 gal (394 L) |
| Max Speed | 11.2 mph (18.1 km/h) |
Weights
| Operating Weight - Standard | 18740 lb (8500.4 kg) |
| Operating Weight - Max Ballast | 55115 lb (24999.8 kg) |
| Average Weight Per Wheel - Max Ballast | 7870 lb (3569.8 kg) |
Tires
| Number Of Tires - Front | 3 |
| Number Of Tires - Rear | 4 |
| Standard Tire Size | 14/70 x 20 |
