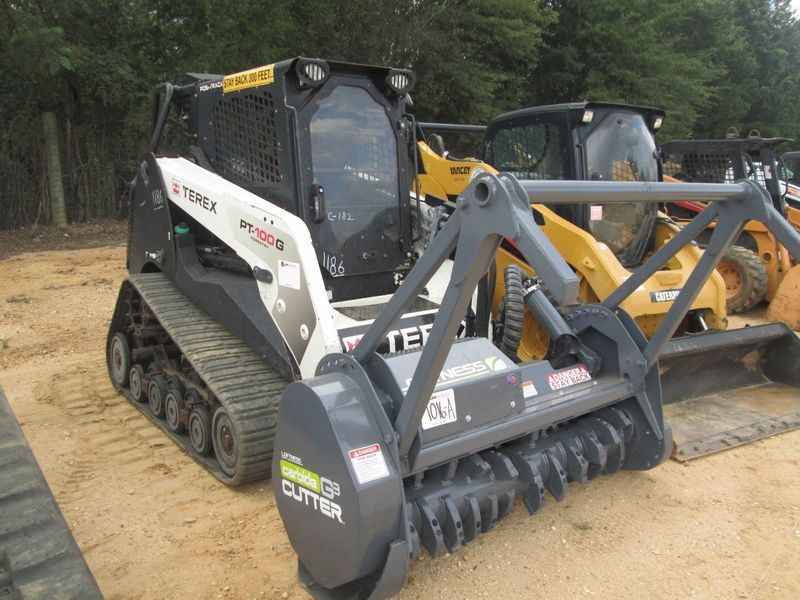

Terex PT100G
Browse All Terex or Multi Terrain Loader Models
Contents:
Dimensions
| Width Over Tracks | 5.84 ft in (1778 mm) |
| Height To Top Of Cab | 7.13 ft in (2172 mm) |
| Ground Clearance | 14.77 in (375 mm) |
| Clearance At Max Lift And Dump | 7.59 ft in (2311 mm) |
| Length With Out Bucket | 9.8 ft in (2985 mm) |
| Length With Bucket | 12.42 ft in (3785 mm) |
Undercarriage
| Length Of Track On Ground | 5.92 ft in (1803 mm) |
| Ground Contact Area | 2556 in2 (1.65 m2) |
| Ground Pressure | 4.5 psi (31.03 kPa) |
| Number Of Track Rollers Per Side | 24 |
| Width Of Track | 18 in (457 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2351 |
| Engine Model | 1104D-44T |
| Gross Power | 99.9 hp (74.5 kw) |
| Power Measured @ | 2200 rpm |
| Peak Torque | 310 lb ft (420.4 Nm) |
| Displacement | 268 cu in (4.4 L) |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 11462 lb (5199.1 kg) |
| Cooling System Fluid Capacity | 4.3 gal (16.3 L) |
| Fuel Capacity | 30 gal (113.6 L) |
| Engine Oil Capacity | 2.3 gal (8.5 L) |
| Hydraulic System Fluid Capacity | 22 gal (83.3 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 120 amps |
| Max Speed - Low Range | 6 mph (9.7 km/h) |
| Max Speed - High Range | 10 mph (16.1 km/h) |
Loader
| Operating Load | 4000 lb (1814.4 kg) |
| Tipping Angle | 8000 degrees |
Hydraulic
| Pump Flow | 20 gal/min (75.8 L/min) |
| Relief Valve Pressure | 3300 psi (22752.7 kPa) |
