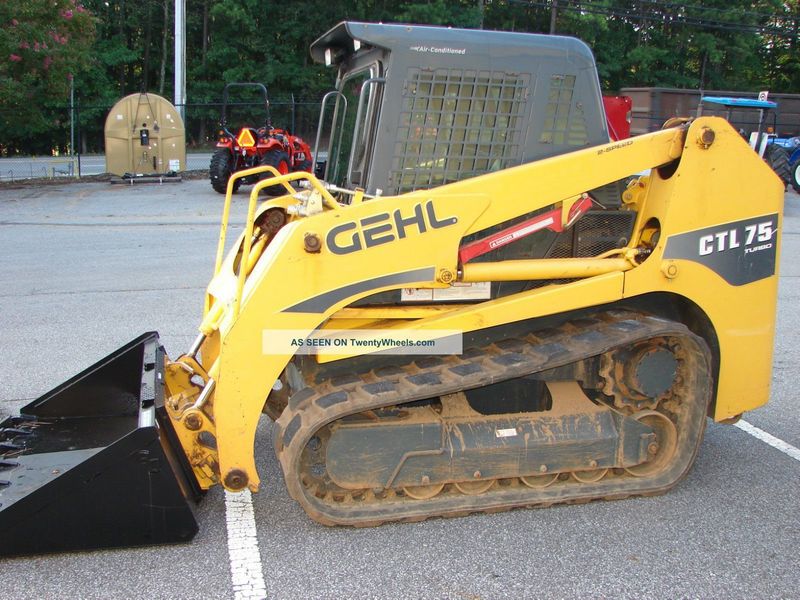

Gehl CTL75
Browse All Gehl or Multi Terrain Loader Models
Contents:
Dimensions
| Width Over Tracks | 5.81 ft in (1770 mm) |
| Height To Top Of Cab | 7.11 ft in (2167 mm) |
| Ground Clearance | 12.8 in (325 mm) |
| Clearance At Max Lift And Dump | 7.9 ft in (2405 mm) |
| Reach At Max Lift And Dump | 2.87 ft in (874 mm) |
| Turning Radius From Center - Inc Bucket | 90.32 in (2294 mm) |
| Length With Bucket | 12.28 ft in (3740 mm) |
| Length With Out Bucket | 9.78 ft in (2980 mm) |
| Turning Radius From Center - Machine Rear | 65.6 in (1666 mm) |
Undercarriage
| Length Of Track On Ground | 4.91 ft in (1496 mm) |
| Number Of Track Rollers Per Side | 4 |
| Width Of Track | 18 in (457 mm) |
| Ground Pressure | 4.3 psi (29.65 kPa) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2348 |
| Engine Model | 4TNV98T |
| Gross Power | 83 hp (61.9 kw) |
| Power Measured @ | 2500 rpm |
| Peak Torque | 219 lb ft (297 Nm) |
| Torque Measured @ | 1800 rpm |
| Displacement | 202.5 cu in (3.4 L) |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 9700.4 lb (4400 kg) |
| Cooling System Fluid Capacity | 4.4 gal (16.5 L) |
| Fuel Capacity | 23.9 gal (90.1 L) |
| Engine Oil Capacity | 2.7 gal (10.2 L) |
| Hydraulic System Fluid Capacity | 12.9 gal (48.5 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 40 amps |
| Max Speed - Low Range | 4.7 mph (7.6 km/h) |
| Max Speed - High Range | 7.2 mph (11.6 km/h) |
Loader
| Operating Load | 2976.3 lb (1350 kg) |
| Tipping Angle | 5952.5 degrees |
| Bucket Capacity | 0.7 yd3 (0.5 m3) |
Hydraulic
| Pump Flow | 19.8 gal/min (74.9 L/min) |
| Relief Valve Pressure | 2988 psi (20601.6 kPa) |
