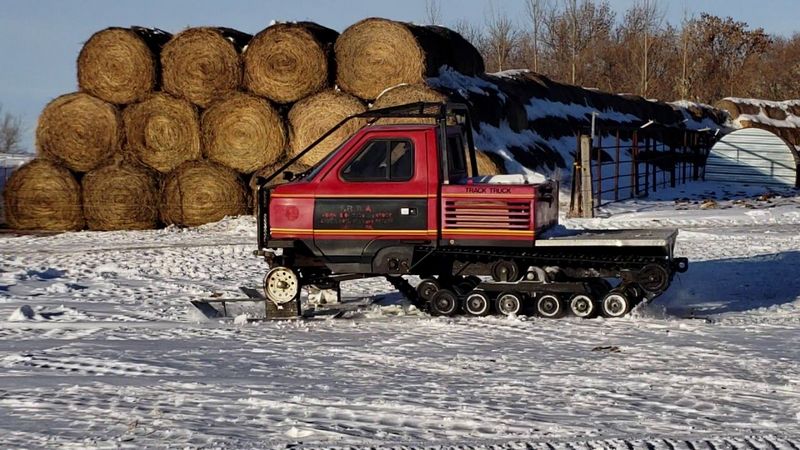

ASV 2800
Browse All ASV or Multi Terrain Loader Models
Contents:
Dimensions
| Width Over Tracks | 5.76 ft in (1753 mm) |
| Height To Top Of Cab | 6.88 ft in (2096 mm) |
| Ground Clearance | 16 in (406 mm) |
| Length With Out Bucket | 9.32 ft in (2838 mm) |
Undercarriage
| Length Of Track On Ground | 6.55 ft in (1994 mm) |
| Ground Pressure | 2.5 psi (17 kPa) |
| Number Of Track Rollers Per Side | 12 |
| Width Of Track | 18 in (457 mm) |
| Ground Contact Area | 2826 in2 (1.82 m2) |
Engine
| Engine Make | 2353 |
| Engine Model | 4JB1 |
| Gross Power | 70 hp (52 kw) |
| Power Measured @ | 3000 rpm |
| Peak Torque | 128 lb ft (174 Nm) |
| Displacement | 171 cu in (2.8 L) |
| Aspiration | natural |
Operational
| Operating Weight | 7450 lb (3379 kg) |
| Cooling System Fluid Capacity | 2.3 gal (8.7 L) |
| Fuel Capacity | 13 gal (49 L) |
| Engine Oil Capacity | 1.7 gal (6.4 L) |
| Hydraulic System Fluid Capacity | 28.1 gal (106 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 65 amps |
| Max Speed - High Range | 7 mph (11.3 km/h) |
Loader
| Breakout Force | 5500 lb (2495 kg) |
| Operating Load | 2350 lb (1066 kg) |
| Tipping Angle | 1645 degrees |
Hydraulic
| Pump Flow | 25 gal/min (95 L/min) |
