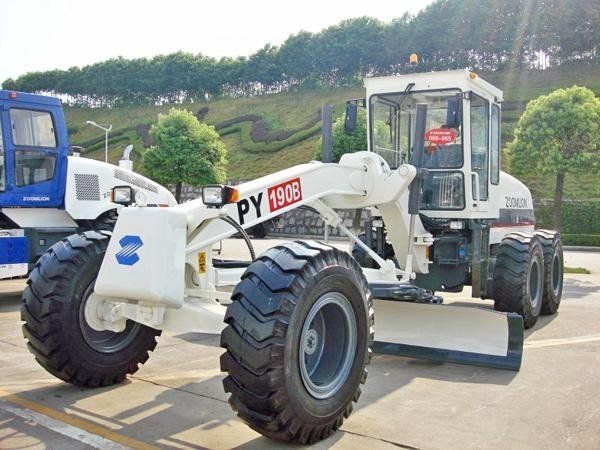

Zoomlion PY190B
Browse All Zoomlion or Motor Grader Models
Contents:
Dimensions
| Overall Length | 29.17 ft in (8890 mm) |
| Width Over Tires | 8.52 ft in (2595 mm) |
| Height To Top Of Isomount Cab | 10.77 ft in (3280 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | QSB6.7-C193 |
| Power Measured @ | 2200 rpm |
| Max Power | 193 hp (144 kw) |
Operational
| Hydraulic System Fluid Capacity | 23.8 gal (90 L) |
| Std Operation Weight - Total | 33951.2 lb (15400 kg) |
| Fuel Capacity | 52.9 gal (200 L) |
| Circle Gearbox Fluid Capacity | 7.4 gal (28 L) |
Steering
| Turning Radius | 25.6 ft in (7.8 m) |
Transmission
| Max Speed - Forward | 22.4 mph (36 km/h) |
| Max Speed - Reverse | 15.6 mph (25 km/h) |
Moldboard
| Moldboard Width | 13.1 ft in (3965 mm) |
| Moldboard Height | 24.1 in (610 mm) |
| Max Depth Of Cut | 19.7 in (500 mm) |
Circle
| Max Lift Above Ground | 18.2 in (460 mm) |
