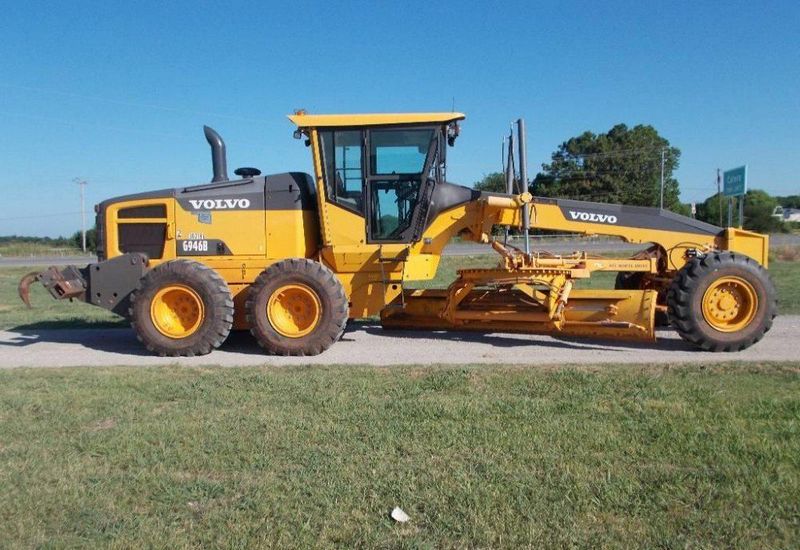

Volvo G946B
Browse All Volvo or Motor Grader Models
Contents:
Dimensions
| Overall Length | 30 ft in (9150 mm) |
| Width Over Tires | 8.25 ft in (2537 mm) |
| Wheelbase | 20.43 ft in (6280 mm) |
| Front Ground Clearance | 2 ft in (610 mm) |
| Blade Base | 8.5 ft in (2650 mm) |
| Height To Top Of Isomount Cab | 10.42 ft in (3225 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Model | D8HGAE4 |
| Net Power Gear 1-2 | 146 hp (108.9 kw) |
| Net Torque Gears 1-2 | 730.2 lb ft (990 Nm) |
| Displacement | 476 cu in (7.8 L) |
| Bore | 4.4 in (110 mm) |
| Stroke | 5.4 in (136 mm) |
| Aspiration | Turbocharged, Aftercooled |
Operational
| Std Operation Weight - Front Axle | 10780.7 lb (4890 kg) |
| Hydraulic System Fluid Capacity | 38 gal (144 L) |
| Std Operation Weight - Rear Axle | 27734.2 lb (12580 kg) |
| Std Operation Weight - Total | 38514.8 lb (17470 kg) |
| Max Operation Weight - Front Axle | 16700.1 lb (7575 kg) |
| Max Operation Weight - Rear Axle | 31400.5 lb (14243 kg) |
| Max Operation Weight - Total | 47999.1 lb (21772 kg) |
| Oil System Fluid Capacity | 5.7 gal (21.5 L) |
| Fuel Capacity | 105.7 gal (400 L) |
| Cooling System Fluid Capacity | 9 gal (34 L) |
| Transmission Fluid Capacity | 16 gal (61 L) |
| Rear Diff/Final Drive Fluid Capacity | 6 gal (22.7 L) |
| Tandem Case Fluid Capacity (Each) | 35.4 gal (134 L) |
| Tire Size | 14:00 x 24, G-2 |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 120 amps |
Steering
| Articulation Angle | 23 degrees |
| Turning Radius | 23835.4 ft in (7265 m) |
Transmission
| Transmission Type | Fully sequential, direct drive, Volvo powershift transmission |
| Number Of Gears - Forward | 8 |
| Number Of Gears - Reverse | 4 |
| Max Speed - Forward | 27.3 mph (43.8 km/h) |
| Max Speed - Reverse | 19.3 mph (30.9 km/h) |
Front Axle
| Wheel Lean | 18 degrees |
| Oscillation - Total | 16 degrees |
| Ground Clearance | 2 ft in (610 mm) |
Moldboard
| Moldboard Width | 12.1 ft in (3658 mm) |
| Moldboard Height | 25 in (635 mm) |
| Moldboard Thickness | 0.9 in (22 mm) |
| Max Depth Of Cut | 31 in (790 mm) |
| Side Shift Left | 26.5 in (673 mm) |
| Side Shift Right | 26.5 in (673 mm) |
| Blade Pull At Max Weight | 36759.9 lb (16674 kg) |
| Blade Down Pressure | 18651.2 lb (8460 kg) |
Hydraulic System
| Pump Type | Axial piston pump |
| Pump Flow | 55 gal/min (208 L/min) |
| Relief Valve Pressure | 3002.3 psi (20700 kPa) |
Circle
| Diameter | 64 in (1626 mm) |
| Rotation | 360 degrees |
| Shift Left | 30.5 in (775 mm) |
| Shift Right | 29.5 in (749 mm) |
| Max Reach Outside Tires - Left | 80 in (2020 mm) |
| Max Reach Outside Tires - Right | 79 in (2010 mm) |
| Blade Tip Angle - Front | 45 degrees |
| Blade Tip Angle - Rear | 6 degrees |
