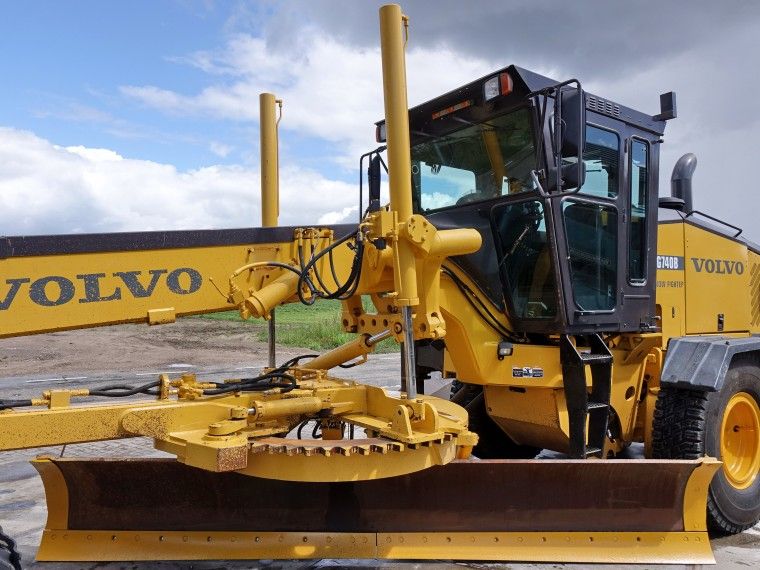

Volvo G740B
Browse All Volvo or Motor Grader Models
Contents:
Dimensions
| Overall Length | 30.25 ft in (9220 mm) |
| Width Over Tires | 8.34 ft in (2540 mm) |
| Wheelbase | 20.5 ft in (6248 mm) |
| Blade Base | 8.92 ft in (2718 mm) |
| Height To Top Of Isomount Cab | 10.17 ft in (3099 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2244 |
| Engine Model | D10BGAE2 |
| Power Measured @ | 2200 rpm |
| Torque Measured @ | 1100 rpm |
| Max Power | 243 hp (181.3 kw) |
| Net Power Gears 7-8 | 243 hp (181.3 kw) |
| Net Torque Gears 7-8 | 846 lb ft (1147.1 Nm) |
| Displacement | 586 cu in (9.7 L) |
| Aspiration | Turbocharged |
Operational
| Std Operation Weight - Front Axle | 11137.8 lb (5052 kg) |
| Std Operation Weight - Rear Axle | 25988.1 lb (11788 kg) |
| Hydraulic System Fluid Capacity | 35.4 gal (134 L) |
| Std Operation Weight - Total | 37125.9 lb (16840 kg) |
| Fuel Capacity | 120 gal (454 L) |
| Cooling System Fluid Capacity | 13.3 gal (50 L) |
| Transmission Fluid Capacity | 10.1 gal (38 L) |
| Rear Diff/Final Drive Fluid Capacity | 6.1 gal (23 L) |
| Tandem Case Fluid Capacity (Each) | 26.5 gal (100 L) |
| Tire Size | 14.00 x 24, G-2 |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 75 amps |
Steering
| Articulation Angle | 22 degrees |
Transmission
| Transmission Type | Powershift |
| Number Of Gears - Forward | 8 |
| Number Of Gears - Reverse | 4 |
| Max Speed - Forward | 27.2 mph (43.8 km/h) |
| Max Speed - Reverse | 19.5 mph (31.4 km/h) |
Front Axle
| Wheel Lean | 18 degrees |
| Oscillation - Total | 16 degrees |
| Ground Clearance | 2.1 ft in (610 mm) |
Moldboard
| Moldboard Width | 12 ft in (3657.6 mm) |
| Moldboard Height | 29 in (736.6 mm) |
| Moldboard Thickness | 1 in (25.4 mm) |
| Max Depth Of Cut | 32 in (812.8 mm) |
| Side Shift Left | 26.5 in (673.1 mm) |
| Side Shift Right | 26.5 in (673.1 mm) |
| Blade Pull At Max Weight | 22089 lb (10019.5 kg) |
| Blade Down Pressure | 19711 lb (8940.8 kg) |
Hydraulic System
| Pump Type | load sensing hydraulic |
| Pump Flow | 75.1 gal/min (284 L/min) |
| Relief Valve Pressure | 2700 psi (18615.9 kPa) |
Circle
| Diameter | 66.3 in (1683 mm) |
| Rotation | 360 degrees |
| Shift Left | 30.5 in (774.7 mm) |
| Shift Right | 29.5 in (749.3 mm) |
| Max Reach Outside Tires - Left | 79.5 in (2019.3 mm) |
| Max Reach Outside Tires - Right | 79 in (2006.6 mm) |
| Max Lift Above Ground | 17.2 in (436.9 mm) |
| Blade Tip Angle - Front | 44 degrees |
| Blade Tip Angle - Rear | 6.5 degrees |
