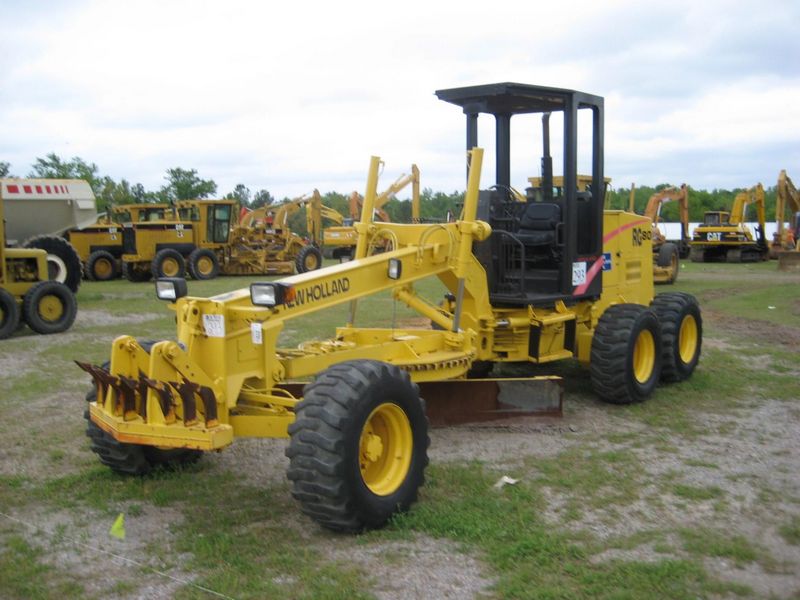

New Holland RG80
Browse All New Holland or Motor Grader Models
Contents:
Dimensions
| Overall Length | 21.72 ft in (6620 mm) |
| Width Over Tires | 7.55 ft in (2300 mm) |
| Height To Top Of Isomount Cab | 9.81 ft in (2990 mm) |
Engine
| Torque | 240 lb ft (325.4 Nm) |
| Number Of Cylinders | 4 |
| Engine Make | New Holland |
| Engine Model | Genesis 5.0 |
| Power Measured @ | 2200 rpm |
| Torque Measured @ | 1400 rpm |
| Max Power | 76 hp (56.7 kw) |
| Displacement | 303.9 cu in (5 L) |
| Bore | 4.5 in (111.8 mm) |
| Stroke | 5 in (127 mm) |
Operational
| Std Operation Weight - Front Axle | 4557 lb (2067.1 kg) |
| Std Operation Weight - Rear Axle | 10943 lb (4963.7 kg) |
| Std Operation Weight - Total | 15500 lb (7030.7 kg) |
| Tire Size | 15.00*19.5 -8 PR (G2) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 100 amps |
Steering
| Articulation Angle | 25 degrees |
| Turning Radius | 18.8 ft in (5.7 m) |
Transmission
| Transmission Type | Torque converter/ Power shift |
| Number Of Gears - Forward | 6 |
| Number Of Gears - Reverse | 3 |
| Max Speed - Forward | 25.1 mph (40.4 km/h) |
| Max Speed - Reverse | 16.5 mph (26.6 km/h) |
Front Axle
| Wheel Lean | 18 degrees |
| Oscillation - Total | 20 degrees |
| Ground Clearance | 1.7 ft in (508 mm) |
Moldboard
| Moldboard Width | 10 ft in (3048 mm) |
| Moldboard Height | 16.4 in (416 mm) |
| Moldboard Thickness | 0.7 in (16 mm) |
Hydraulic System
| Pump Type | BARNS gear pump |
| Pump Flow | 10.1 gal/min (38.3 L/min) |
| Relief Valve Pressure | 1850 psi (12755.3 kPa) |
Circle
| Diameter | 52.8 in (1339 mm) |
| Rotation | 360 degrees |
| Max Reach Outside Tires - Left | 70.6 in (1791 mm) |
| Max Reach Outside Tires - Right | 76.2 in (1935 mm) |
| Max Lift Above Ground | 15.4 in (391.2 mm) |
