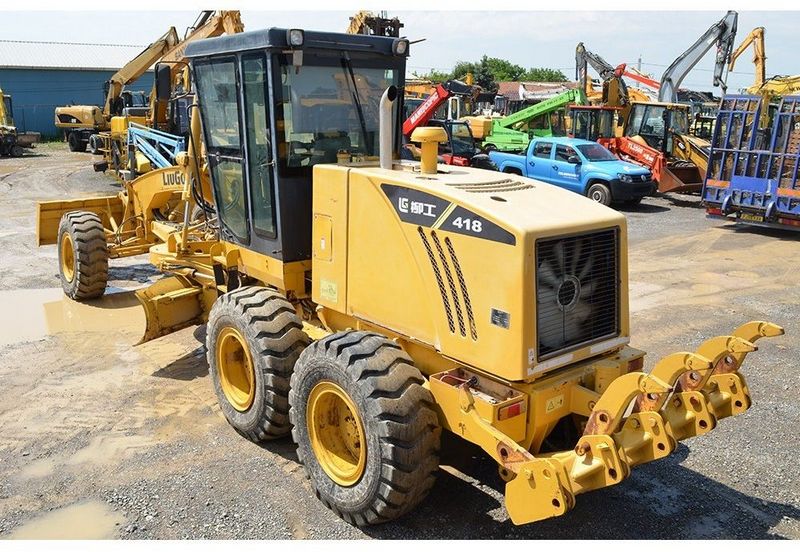

LiuGong CLG418
Browse All LiuGong or Motor Grader Models
Contents:
Dimensions
| Overall Length | 28.65 ft in (8731 mm) |
| Width Over Tires | 8.54 ft in (2600 mm) |
| Height To Top Of Isomount Cab | 11.28 ft in (3438 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | 6CTA-8.3 |
| Net Power Gear 1-2 | 193.2 hp (144 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 506.5 cu in (8.3 L) |
Operational
| Std Operation Weight - Total | 34171.7 lb (15500 kg) |
Steering
| Articulation Angle | 20 degrees |
| Turning Radius | 27.1 ft in (8.3 m) |
Transmission
| Transmission Type | Powershift |
| Number Of Gears - Forward | 6 |
| Number Of Gears - Reverse | 3 |
| Max Speed - Forward | 25.1 mph (40.3 km/h) |
| Max Speed - Reverse | 16.3 mph (26.1 km/h) |
Front Axle
| Wheel Lean | 17 degrees |
| Oscillation - Total | 30 degrees |
Moldboard
| Moldboard Width | 13 ft in (3960 mm) |
| Moldboard Height | 25.6 in (650 mm) |
| Moldboard Thickness | 0.9 in (22 mm) |
Circle
| Max Reach Outside Tires - Left | 104.6 in (2655 mm) |
| Max Reach Outside Tires - Right | 106.5 in (2705 mm) |
| Max Lift Above Ground | 26.6 in (675 mm) |
| Blade Tip Angle - Front | 40 degrees |
| Blade Tip Angle - Rear | 70 degrees |
