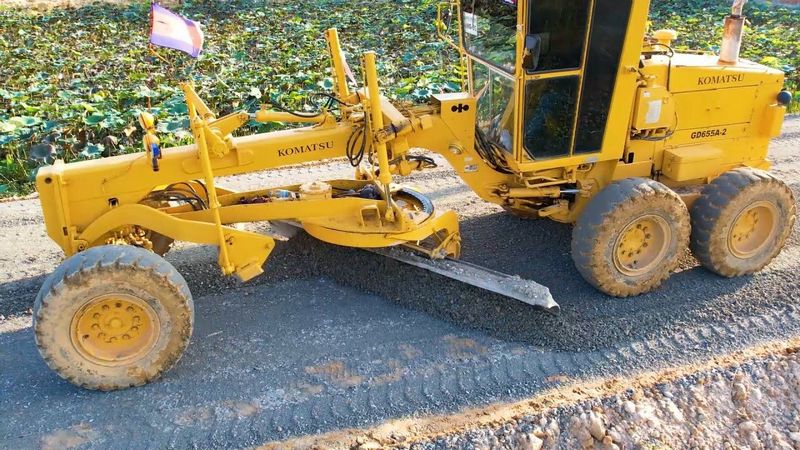

Komatsu GD655A-2
Browse All Komatsu or Motor Grader Models
Contents:
Dimensions
| Overall Length | 27.61 ft in (8415 mm) |
| Wheelbase | 19.69 ft in (6000 mm) |
| Rear Ground Clearance | 1.09 ft in (330 mm) |
| Tandem Axle Wheelbase | 4.98 ft in (1516 mm) |
| Front Ground Clearance | 1.99 ft in (605 mm) |
| Blade Base | 8.85 ft in (2695 mm) |
| Height To Top Of Isomount Cab | 19.69 ft in (6000 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | NH220-CI |
| Net Power Gear 5-6 | 165 hp (123.1 kw) |
| Max Power | 165 hp (123.1 kw) |
| Net Torque Gears 5-6 | 550 lb ft (745.7 Nm) |
| Displacement | 743 cu in (12.2 L) |
Operational
| Std Operation Weight - Front Axle | 8135.1 lb (3690 kg) |
| Std Operation Weight - Rear Axle | 20966 lb (9510 kg) |
| Std Operation Weight - Total | 29101.1 lb (13200 kg) |
| Tire Size | 13.00-24-10PR |
Steering
| Articulation Angle | 25 degrees |
| Turning Radius | 22.7 ft in (6.9 m) |
Transmission
| Transmission Type | Hydroshift |
| Number Of Gears - Forward | 6 |
| Number Of Gears - Reverse | 6 |
| Max Speed - Forward | 27.1 mph (43.6 km/h) |
| Max Speed - Reverse | 32.1 mph (51.6 km/h) |
Front Axle
| Wheel Lean | 23 degrees |
| Oscillation - Total | 30 degrees |
| Ground Clearance | 2 ft in (605 mm) |
Moldboard
| Moldboard Width | 13.2 ft in (4010 mm) |
| Moldboard Height | 25.8 in (655 mm) |
| Moldboard Thickness | 0.8 in (19 mm) |
| Max Depth Of Cut | 22.5 in (570 mm) |
Circle
| Max Reach Outside Tires - Left | 94.9 in (2410 mm) |
| Max Reach Outside Tires - Right | 92.6 in (2350 mm) |
| Max Lift Above Ground | 15.8 in (400 mm) |
