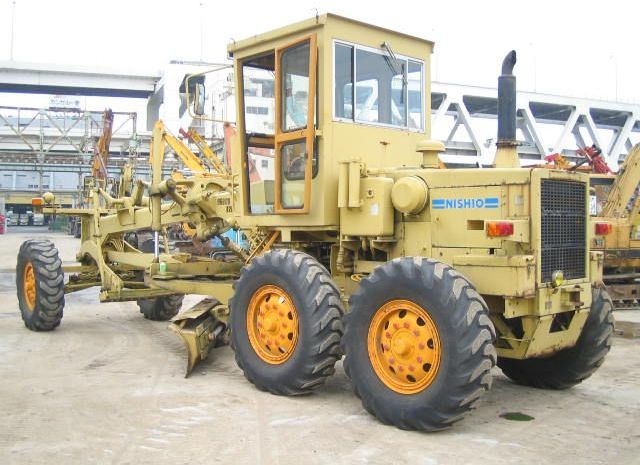

Komatsu GD505A-2
Browse All Komatsu or Motor Grader Models
Contents:
Dimensions
| Overall Length | 25.99 ft in (7920 mm) |
| Width Over Tires | 7.67 ft in (2335 mm) |
| Wheelbase | 18.97 ft in (5780 mm) |
| Rear Ground Clearance | 1.15 ft in (350 mm) |
| Tandem Axle Wheelbase | 4.94 ft in (1505 mm) |
| Front Ground Clearance | 1.81 ft in (550 mm) |
| Blade Base | 8.34 ft in (2540 mm) |
| Height To Top Of Isomount Cab | 9.11 ft in (2775 mm) |
Engine
| Engine Make | 2238 |
| Engine Model | S6D105-1 |
| Net Power Gear 5-6 | 130 hp (97 kw) |
| Max Power | 130 hp (97 kw) |
| Net Torque Gears 5-6 | 345 lb ft (467.8 Nm) |
| Displacement | 396 cu in (6.5 L) |
| Aspiration | turbocharged |
Operational
| Std Operation Weight - Front Axle | 6525.7 lb (2960 kg) |
| Std Operation Weight - Rear Axle | 17460.7 lb (7920 kg) |
| Std Operation Weight - Total | 23986.3 lb (10880 kg) |
| Tire Size | 13.00-24-8PR |
Steering
| Turning Radius | 21.7 ft in (6.6 m) |
Transmission
| Transmission Type | Hydroshift |
| Number Of Gears - Forward | 6 |
| Number Of Gears - Reverse | 6 |
| Max Speed - Forward | 27 mph (43.4 km/h) |
| Max Speed - Reverse | 28 mph (45 km/h) |
Front Axle
| Wheel Lean | 20 degrees |
| Oscillation - Total | 30 degrees |
| Ground Clearance | 1.9 ft in (550 mm) |
Moldboard
| Moldboard Width | 12.2 ft in (3710 mm) |
| Moldboard Height | 25.8 in (655 mm) |
| Moldboard Thickness | 0.8 in (19 mm) |
| Max Depth Of Cut | 19.9 in (505 mm) |
Circle
| Max Reach Outside Tires - Left | 80.8 in (2050 mm) |
| Max Reach Outside Tires - Right | 78.8 in (2000 mm) |
| Max Lift Above Ground | 17 in (430 mm) |
