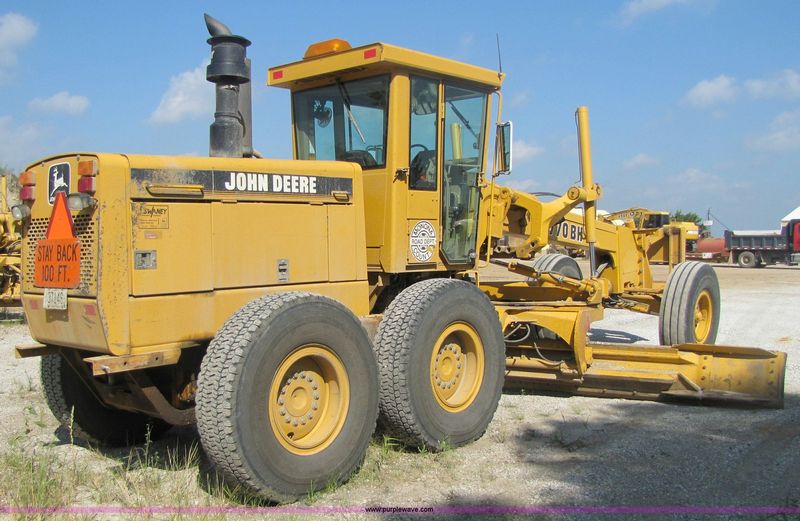

John Deere 770BH
Browse All John Deere or Motor Grader Models
Contents:
Dimensions
| Overall Length | 27.92 ft in (8510 mm) |
| Wheelbase | 19.59 ft in (5970 mm) |
| Tandem Axle Wheelbase | 5.06 ft in (1540 mm) |
| Blade Base | 8.76 ft in (2670 mm) |
| Height To Top Of Isomount Cab | 10.14 ft in (3090 mm) |
Engine
| Number Of Cylinders | 6 |
| Net Power Gear 1-3 | 155 hp (115.6 kw) |
| Net Power Gear 4-6 | 162 hp (120.9 kw) |
| Net Torque Gear 1-3 | 522 lb ft (707.8 Nm) |
| Net Torque Gear 4-8 | 615 lb ft (833.9 Nm) |
| Engine Model | 6076A |
| Power Measured @ | 2200 rpm |
| Torque Measured @ | 1100 rpm |
| Displacement | 466.1 cu in (7.7 L) |
Operational
| Std Operation Weight - Front Axle | 8700 lb (3946.3 kg) |
| Std Operation Weight - Rear Axle | 22600 lb (10251.2 kg) |
| Std Operation Weight - Total | 31300 lb (14197.5 kg) |
| Fuel Capacity | 89.9 gal (340 L) |
| Cooling System Fluid Capacity | 10.1 gal (38 L) |
| Transmission Fluid Capacity | 23 gal (87 L) |
| Circle Gearbox Fluid Capacity | 1.1 gal (3.8 L) |
| Tandem Case Fluid Capacity (Each) | 5 gal (18.9 L) |
| Tire Size | 13.00 - 24 |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 50 amps |
Steering
| Articulation Angle | 25 degrees |
| Turning Radius | 22 ft in (6.7 m) |
Transmission
| Transmission Type | Power Shift |
| Number Of Gears - Forward | 8 |
| Number Of Gears - Reverse | 4 |
| Max Speed - Forward | 25.3 mph (40.6 km/h) |
| Max Speed - Reverse | 8.6 mph (13.8 km/h) |
Front Axle
| Wheel Lean | 20 degrees |
| Oscillation - Total | 32 degrees |
| Ground Clearance | 1.9 ft in (559 mm) |
Moldboard
| Moldboard Length | 12.1 ft in (3660 mm) |
| Moldboard Height | 24.1 in (610 mm) |
| Moldboard Thickness | 0.9 in (22 mm) |
| Side Shift Left | 26.9 in (683 mm) |
| Side Shift Right | 26.9 in (683 mm) |
Hydraulic System
| Pump Type | Closed Center Variable Displacement |
| Pump Flow | 52.4 gal/min (198.4 L/min) |
Circle
| Diameter | 59.1 in (1500 mm) |
| Rotation | 360 degrees |
| Shift Left | 31 in (787 mm) |
| Shift Right | 28.6 in (724 mm) |
| Max Reach Outside Tires - Left | 85.1 in (2160 mm) |
| Max Reach Outside Tires - Right | 83.1 in (2110 mm) |
| Max Lift Above Ground | 18.6 in (470 mm) |
| Blade Tip Angle - Front | 49 degrees |
| Blade Tip Angle - Rear | 5 degrees |
