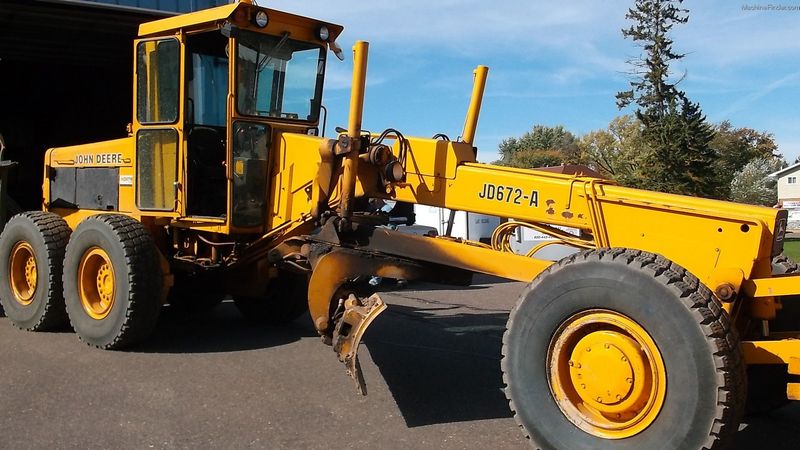

John Deere 672A
Browse All John Deere or Motor Grader Models
Contents:
Dimensions
| Overall Length | 27.27 ft in (8310 mm) |
| Width Over Tires | 7.85 ft in (2390 mm) |
| Wheelbase | 19.59 ft in (5970 mm) |
| Tandem Axle Wheelbase | 5.06 ft in (1540 mm) |
| Front Ground Clearance | 1.84 ft in (559 mm) |
| Blade Base | 8.34 ft in (2540 mm) |
| Height To Top Of Isomount Cab | 10.5 ft in (3200 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | 6-414T |
| Power Measured @ | 2300 rpm |
| Torque Measured @ | 1300 rpm |
| Max Power | 125 hp (93.3 kw) |
| Net Power Gears 7-8 | 125 hp (93.3 kw) |
| Net Torque Gears 7-8 | 372 lb ft (504.4 Nm) |
| Displacement | 414 cu in (6.8 L) |
| Aspiration | Turbocharged |
Operational
| Std Operation Weight - Front Axle | 8702 lb (3947 kg) |
| Std Operation Weight - Rear Axle | 18650 lb (8460 kg) |
| Hydraulic System Fluid Capacity | 38 gal (143.8 L) |
| Std Operation Weight - Total | 27352 lb (12407 kg) |
| Max Operation Weight - Front Axle | 9128 lb (4140 kg) |
| Max Operation Weight - Rear Axle | 21726 lb (9855 kg) |
| Max Operation Weight - Total | 30854 lb (13995 kg) |
| Oil System Fluid Capacity | 5 gal (18.9 L) |
| Fuel Capacity | 60 gal (227 L) |
| Cooling System Fluid Capacity | 7 gal (26.5 L) |
| Circle Gearbox Fluid Capacity | 3 gal (2.8 L) |
| Tandem Case Fluid Capacity (Each) | 5 gal (18.9 L) |
| Tire Size | 13.00-24 |
| Operating Voltage | 25 V |
| Alternator Supplied Amperage | 42 amps |
Steering
| Articulation Angle | 25 degrees |
| Turning Radius | 22.6 ft in (6.9 m) |
Transmission
| Transmission Type | power shift |
| Number Of Gears - Forward | 8 |
| Number Of Gears - Reverse | 4 |
| Max Speed - Forward | 23.9 mph (38.5 km/h) |
| Max Speed - Reverse | 7.6 mph (12.2 km/h) |
Front Axle
| Wheel Lean | 20 degrees |
| Oscillation - Total | 30 degrees |
| Ground Clearance | 1.9 ft in (559 mm) |
Moldboard
| Moldboard Width | 12 ft in (3.7 mm) |
| Moldboard Height | 24 in (610 mm) |
| Moldboard Thickness | 0.9 in (22 mm) |
| Max Depth Of Cut | 6 in (152 mm) |
| Side Shift Left | 26.9 in (683 mm) |
| Side Shift Right | 26.9 in (683 mm) |
Hydraulic System
| Pump Type | Closed Center variable Displacement |
| Pump Flow | 37.6 gal/min (142.4 L/min) |
Circle
| Diameter | 58 in (1.5 mm) |
| Rotation | 360 degrees |
| Shift Left | 34.4 in (874 mm) |
| Shift Right | 30 in (762 mm) |
| Max Reach Outside Tires - Left | 87.5 in (2220 mm) |
| Max Reach Outside Tires - Right | 84.7 in (2150 mm) |
| Max Lift Above Ground | 16.2 in (409 mm) |
| Blade Tip Angle - Front | 44 degrees |
| Blade Tip Angle - Rear | 10 degrees |
