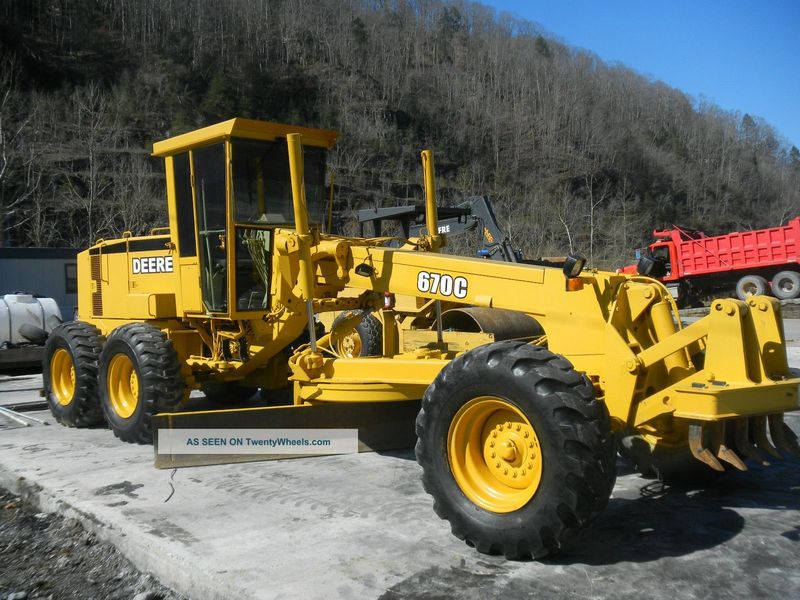

John Deere 670C
Browse All John Deere or Motor Grader Models
Contents:
Dimensions
| Overall Length | 28.15 ft in (8580 mm) |
| Width Over Tires | 8.17 ft in (2490 mm) |
| Wheelbase | 19.59 ft in (5970 mm) |
| Tandem Axle Wheelbase | 5.06 ft in (1540 mm) |
| Front Ground Clearance | 2.01 ft in (610 mm) |
| Blade Base | 8.76 ft in (2670 mm) |
| Height To Top Of Isomount Cab | 10.18 ft in (3100 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | 6068H |
| Power Measured @ | 2000 rpm |
| Torque Measured @ | 1000 rpm |
| Max Power | 140 hp (104.4 kw) |
| Net Power Gears 7-8 | 140 hp (104.4 kw) |
| Net Torque Gears 7-8 | 496 lb ft (672.5 Nm) |
| Displacement | 414 cu in (6.8 L) |
| Aspiration | Turbocharged with Aftercooler |
Operational
| Std Operation Weight - Front Axle | 8640 lb (3919 kg) |
| Std Operation Weight - Rear Axle | 21860 lb (9913 kg) |
| Hydraulic System Fluid Capacity | 15.5 gal (59 L) |
| Std Operation Weight - Total | 30500 lb (13832 kg) |
| Max Operation Weight - Front Axle | 9760 lb (4427 kg) |
| Max Operation Weight - Rear Axle | 25470 lb (11551 kg) |
| Oil System Fluid Capacity | 6.4 gal (24 L) |
| Max Operation Weight - Total | 35230 lb (15977 kg) |
| Fuel Capacity | 106 gal (403 L) |
| Cooling System Fluid Capacity | 11 gal (42 L) |
| Transmission Fluid Capacity | 10 gal (38 L) |
| Rear Diff/Final Drive Fluid Capacity | 9.5 gal (36 L) |
| Circle Gearbox Fluid Capacity | 4 gal (3.8 L) |
| Tandem Case Fluid Capacity (Each) | 20 gal (75 L) |
| Tire Size | 13.00-24 |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 55 amps |
Steering
| Articulation Angle | 25 degrees |
| Turning Radius | 22 ft in (6.7 m) |
Transmission
| Transmission Type | Power Shift |
| Number Of Gears - Forward | 8 |
| Number Of Gears - Reverse | 8 |
| Max Speed - Forward | 25 mph (40.2 km/h) |
| Max Speed - Reverse | 25 mph (40.2 km/h) |
Front Axle
| Wheel Lean | 20 degrees |
| Oscillation - Total | 32 degrees |
| Ground Clearance | 24 ft in (610 mm) |
Moldboard
| Moldboard Width | 12 ft in (3.7 mm) |
| Moldboard Height | 24 in (610 mm) |
| Moldboard Thickness | 0.9 in (22 mm) |
| Side Shift Left | 26.9 in (683 mm) |
| Side Shift Right | 26.9 in (683 mm) |
| Blade Pull At Max Weight | 24248 lb (10998.8 kg) |
Hydraulic System
| Pump Type | Closed center variavle displacement |
| Pump Flow | 45.6 gal/min (173 L/min) |
| Relief Valve Pressure | 2550 psi (17581.7 kPa) |
Circle
| Diameter | 59.9 in (1520 mm) |
| Rotation | 360 degrees |
| Shift Left | 31 in (787 mm) |
| Shift Right | 28.6 in (724 mm) |
| Max Reach Outside Tires - Left | 85.1 in (2160 mm) |
| Max Reach Outside Tires - Right | 83.1 in (2110 mm) |
| Max Lift Above Ground | 17.5 in (444 mm) |
| Blade Tip Angle - Front | 49 degrees |
| Blade Tip Angle - Rear | 5 degrees |
