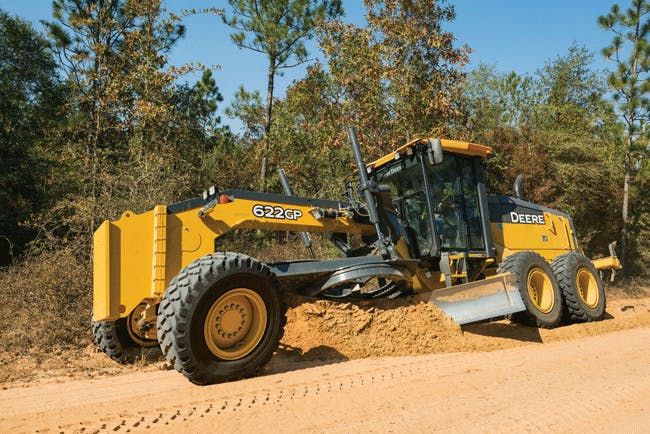

John Deere 622G_GP
Browse All John Deere or Motor Grader Models
Contents:
Dimensions
| Overall Length | 350 in (8890 mm) |
| Wheelbase | 20.21 ft in (6160 mm) |
| Blade Base | 8.44 ft in (2570 mm) |
| Height Over Rops | 10.44 ft in (3180 mm) |
| Moldboard Sideshift - Left | 2.25 ft in (683 mm) |
| Moldboard Sideshift - Right | 2.25 ft in (683 mm) |
| Circle Rotation | 360 |
| Frame Articulation | 22 |
| Shoulder Reach - Right | 6.84 ft in (2083 mm) |
| Transport Width | 2490 (98) |
| Turning Radius - Minimum | 23.66 ft in (7.21 m) |
| Shoulder Reach - Left | 6.84 ft in (2083 mm) |
Driveline
| Engine Model | PowerTech PSS 6.8L |
| Displacement | 415 cu in (6.8 L) |
| Engine Manufacturer | John Deere |
| Engine Output - Net | 225.3 hp (168 kw) |
| Torque Rise | 43 % |
| Service Brake Type | Multiple Wet Discs |
| Number Of Speeds - Forward | 8 |
| Number Of Speeds - Reverse | 8 |
| Number Of Cylinders | 6 |
| Service Brake Actuation | Hydraulic |
| Tire Size - Standard | 14.00 - 24 |
| Transmission Manufacturer | John Deere |
| Net Power - Gear 1 | 127 (170) |
| Net Power - Gear2 | 138 (185) |
| Net Power - Gear 3 | 149 (200) |
| Net Power - Gear 4 | 157 (210) |
| Net Power - Gear5 | 157 (210) |
| Net Power - Gear6 | 160 (215) |
| Net Power - Gear 7 | 164 (220) |
| Net Power - Gear8 | 168 (225) |
| Front Wheel Lean | 20 |
| Front Wheel Drive | Yes |
| Peak Engine Torque | 1035 (763) |
| Axle Oscillation | 32 |
Performance
| System Voltage | 24 V |
| Pump Flow | 56.1 gal/min (212 L/min) |
| Relief Pressure | 2750 psi (18960.6 kPa) |
| Loading - Front Axle | 9211 lb (4178 kg) |
| Loading - Rear Axle / Tandem | 25500.9 lb (11567 kg) |
| Speed 8 - Fwd | 45.5 (28.3) |
Weights
| Operating Weight | 36960.5 lb (16765 kg) |
| Weight With Push Block & Ripper | 42059.8 lb (19078 kg) |
| Operating Weight - Maximum | 49842.2 lb (22608 kg) |
