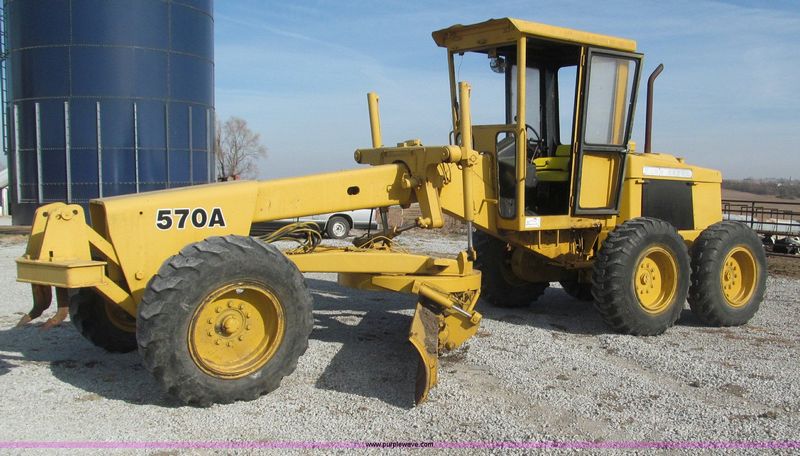

John Deere 570A
Browse All John Deere or Motor Grader Models
Contents:
Dimensions
| Overall Length | 26.71 ft in (8140 mm) |
| Wheelbase | 17.33 ft in (5280 mm) |
| Tandem Axle Wheelbase | 4.73 ft in (1440 mm) |
| Front Ground Clearance | 1.96 ft in (597 mm) |
| Blade Base | 7.68 ft in (2340 mm) |
| Height To Top Of Isomount Cab | 10.5 ft in (3200 mm) |
Engine
| Torque | 238 lb ft (322.7 Nm) |
| Number Of Cylinders | 6 |
| Gross Horsepower | 92 hp (68.7 kw) |
| Net Power | 85 hp (63.4 kw) |
| Power Measured @ | 2300 rpm |
| Torque Measured @ | 1300 rpm |
| Displacement | 329 cu in (5.4 L) |
| Bore | 4.1 in (102 mm) |
| Stroke | 4.4 in (110 mm) |
| Aspiration | Turbochraged |
Operational
| Std Operation Weight - Front Axle | 5749.7 lb (2608 kg) |
| Std Operation Weight - Rear Axle | 14319.1 lb (6495 kg) |
| Hydraulic System Fluid Capacity | 21.1 gal (79.5 L) |
| Std Operation Weight - Total | 20024.6 lb (9083 kg) |
| Max Operation Weight - Front Axle | 6752.8 lb (3063 kg) |
| Max Operation Weight - Rear Axle | 14749 lb (6690 kg) |
| Oil System Fluid Capacity | 3.1 gal (11.4 L) |
| Max Operation Weight - Total | 21104.9 lb (9573 kg) |
| Fuel Capacity | 50.1 gal (189.3 L) |
| Cooling System Fluid Capacity | 5.7 gal (21.2 L) |
| Circle Gearbox Fluid Capacity | 0.4 gal (1.4 L) |
| Tandem Case Fluid Capacity (Each) | 5 gal (18.9 L) |
| Tire Size | 13.00-24 |
| Operating Voltage | 12 V |
Steering
| Articulation Angle | 22 degrees |
| Turning Radius | 18 ft in (5.5 m) |
Transmission
| Transmission Type | Power Shift |
| Number Of Gears - Forward | 8 |
| Number Of Gears - Reverse | 4 |
| Max Speed - Forward | 21.7 mph (34.8 km/h) |
| Max Speed - Reverse | 7.1 mph (11.4 km/h) |
Front Axle
| Wheel Lean | 20 degrees |
| Oscillation - Total | 30 degrees |
| Ground Clearance | 2 ft in (597 mm) |
Moldboard
| Moldboard Length | 12.1 ft in (3660 mm) |
| Moldboard Height | 22.1 in (559 mm) |
| Moldboard Thickness | 0.8 in (19.1 mm) |
| Side Shift Left | 31.3 in (794 mm) |
| Side Shift Right | 26.8 in (679 mm) |
Hydraulic System
| Pump Type | Closed-center |
| Pump Flow | 27 gal/min (102.3 L/min) |
| Relief Valve Pressure | 2000 psi (13789.6 kPa) |
Circle
| Diameter | 54 in (1370 mm) |
| Rotation | 360 degrees |
| Max Reach Outside Tires - Left | 77.2 in (1960 mm) |
| Max Reach Outside Tires - Right | 71.7 in (1820 mm) |
| Max Lift Above Ground | 13 in (330 mm) |
| Blade Tip Angle - Front | 45 degrees |
| Blade Tip Angle - Rear | 5 degrees |
