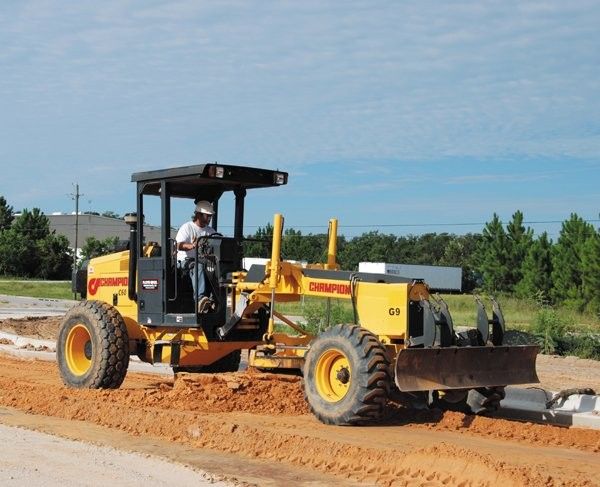

Champion C60C
Browse All Champion or Motor Grader Models
Contents:
Dimensions
| Overall Length | 20.84 ft in (6350 mm) |
| Width Over Tires | 7.17 ft in (2184 mm) |
| Height To Top Of Isomount Cab | 9.51 ft in (2896 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2347 |
| Engine Model | 4BT3.9 |
| Net Power Gear 1-2 | 80.5 hp (60 kw) |
| Power Measured @ | 2500 rpm |
| Displacement | 238 cu in (3.9 L) |
Operational
| Std Operation Weight - Total | 12808.9 lb (5810 kg) |
Steering
| Articulation Angle | 27 degrees |
| Turning Radius | 9.6 ft in (2.9 m) |
Transmission
| Transmission Type | Hydrostatic |
| Max Speed - Forward | 19.9 mph (32 km/h) |
| Max Speed - Reverse | 19.9 mph (32 km/h) |
Front Axle
| Wheel Lean | 15 degrees |
| Oscillation - Total | 35 degrees |
Moldboard
| Moldboard Width | 10 ft in (3048 mm) |
| Moldboard Height | 19.1 in (483 mm) |
| Moldboard Thickness | 0.7 in (16 mm) |
Circle
| Max Reach Outside Tires - Left | 75 in (1905 mm) |
| Max Reach Outside Tires - Right | 75 in (1905 mm) |
| Max Lift Above Ground | 12.1 in (305 mm) |
| Blade Tip Angle - Front | 45 degrees |
| Blade Tip Angle - Rear | 5 degrees |
