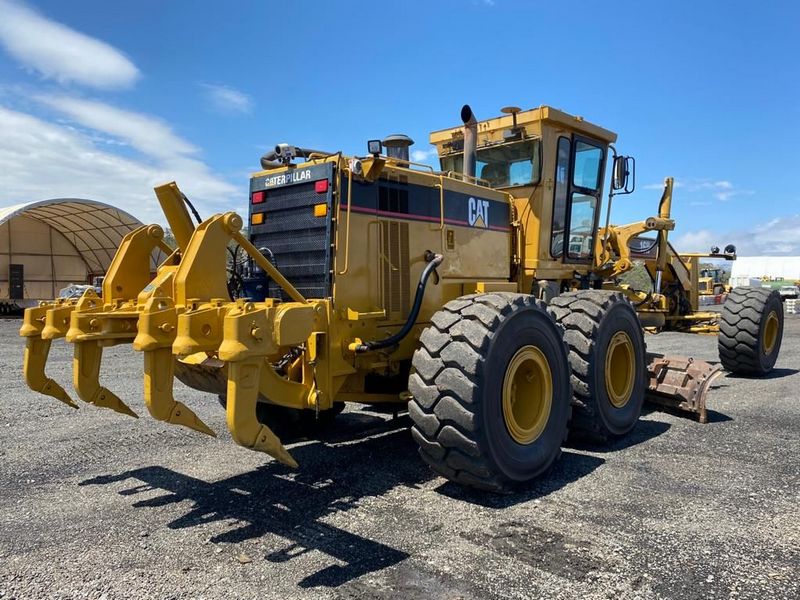

Caterpillar 16H ES
Browse All Caterpillar or Motor Grader Models
Contents:
Dimensions
| Overall Length | 32.78 ft in (9990 mm) |
| Width Over Tires | 10.11 ft in (3080 mm) |
| Wheelbase | 22.84 ft in (6960 mm) |
| Blade Base | 10.08 ft in (3070 mm) |
| Height To Top Of Isomount Cab | 11.55 ft in (3520 mm) |
Engine
| Engine Make | 2236 |
| Engine Model | 3406 DITA |
| Max Power | 275 hp (205.1 kw) |
| Net Power Gears 7-8 | 275 hp (205.1 kw) |
| Displacement | 891 cu in (14.6 L) |
Operational
| Hydraulic System Fluid Capacity | 34.4 gal (130 L) |
| Std Operation Weight - Total | 54560.1 lb (24748 kg) |
| Fuel Capacity | 130 gal (492 L) |
| Tire Size | 15-25 12PR (E-2) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 50 amps |
Steering
| Articulation Angle | 20 degrees |
| Turning Radius | 27 ft in (8.2 m) |
Transmission
| Number Of Gears - Forward | 8 |
| Number Of Gears - Reverse | 8 |
| Max Speed - Forward | 27.7 mph (44.5 km/h) |
| Max Speed - Reverse | 26.3 mph (42.3 km/h) |
Front Axle
| Wheel Lean | 18 degrees |
| Oscillation - Total | 32 degrees |
Moldboard
| Moldboard Width | 16.1 ft in (4880 mm) |
| Moldboard Height | 31 in (787 mm) |
| Moldboard Thickness | 1 in (25 mm) |
Hydraulic System
| Pump Type | Axial Piston |
| Pump Flow | 64.2 gal/min (243 L/min) |
| Relief Valve Pressure | 3500 psi (24131.7 kPa) |
Circle
| Max Lift Above Ground | 16.5 in (419 mm) |
