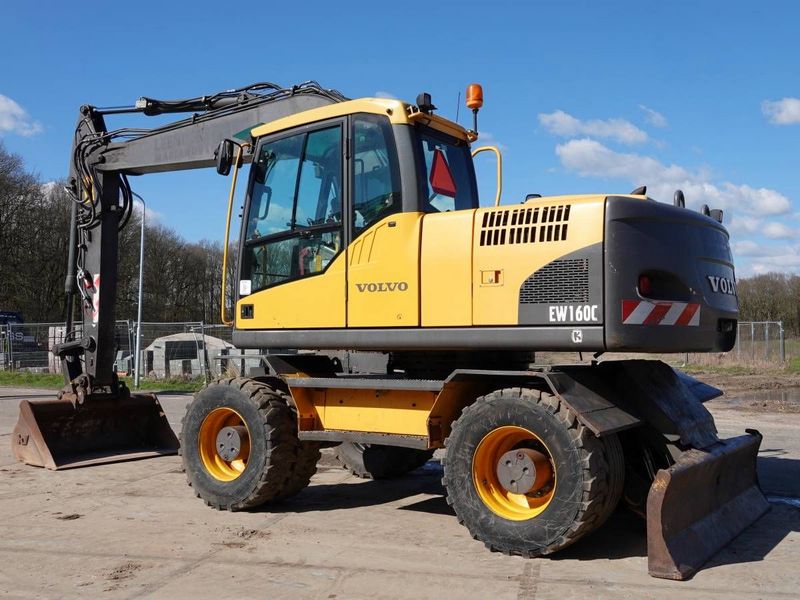

Volvo EW160C
Browse All Volvo or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Shipping Length Of Unit | 26.84 ft in (8180 mm) |
| Shipping Height Of Unit | 9.71 ft in (2958 mm) |
| Max Cutting Height | 29.04 ft in (8851 mm) |
| Max Loading Height | 19.52 ft in (5949 mm) |
| Max Reach Along Ground | 27.53 ft in (8390 mm) |
| Max Vertical Wall Dig Depth | 14 ft in (4267 mm) |
| Max Digging Depth | 16.85 ft in (5135 mm) |
| Boom/Stick Option (Mex) 1 | Boom 16'5" (5000mm)/Stick 6'7" (2000mm) |
Boom/Stick Option (Mex) 2
| Shipping Length Of Unit | 26.88 ft in (8190 mm) |
| Shipping Height Of Unit | 10.47 ft in (3190 mm) |
| Max Cutting Height | 29.9 ft in (9111 mm) |
| Max Loading Height | 20.31 ft in (6188 mm) |
| Max Reach Along Ground | 28.96 ft in (8824 mm) |
| Max Vertical Wall Dig Depth | 15.41 ft in (4694 mm) |
| Max Digging Depth | 18.33 ft in (5585 mm) |
| Boom/Stick Option (Mex) 2 | Boom 16'5" (5000mm)/Stick 8'0" (2450mm) |
Boom/Stick Option (Mex) 3
| Shipping Height Of Unit | 10.73 ft in (3270 mm) |
| Shipping Length Of Unit | 26.81 ft in (8170 mm) |
| Max Cutting Height | 30.18 ft in (9196 mm) |
| Max Loading Height | 20.47 ft in (6237 mm) |
| Max Reach Along Ground | 29.43 ft in (8969 mm) |
| Max Vertical Wall Dig Depth | 15.87 ft in (4837 mm) |
| Max Digging Depth | 18.82 ft in (5735 mm) |
| Boom/Stick Option (Mex) 3 | Boom 16'5" (5000mm)/Stick 8'6" (2600mm) |
Boom/Stick Option (Mex) 4
| Shipping Height Of Unit | 11.95 ft in (3640 mm) |
| Shipping Length Of Unit | 26.05 ft in (7940 mm) |
| Max Cutting Height | 31.1 ft in (9479 mm) |
| Max Loading Height | 21.51 ft in (6556 mm) |
| Max Reach Along Ground | 31.03 ft in (9455 mm) |
| Max Vertical Wall Dig Depth | 17.43 ft in (5311 mm) |
| Max Digging Depth | 20.46 ft in (6235 mm) |
| Boom/Stick Option (Mex) 4 | Boom 16'5" (5000mm)/Stick 10'2" (3100mm) |
Dimensions
| Wheelbase | 8.54 ft in (2600 mm) |
| Tail Swing Radius | 7.06 ft in (2150 mm) |
| Overall Width | 8.34 in (2540 mm) |
| Ground Clearance | 1.12 ft in (340 mm) |
| Overall Width - Outriggers Down | 13.1 ft in (3990 mm) |
| Height To Top Of Cab | 10.31 ft in (3140 mm) |
| Upper Structure Clearance | 4.17 ft in (1270 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2244 |
| Engine Model | D6E EDE3 |
| Gross Power | 154 hp (114.9 kw) |
| Net Power | 142 hp (105.9 kw) |
| Power Measured @ | 1800 rpm |
| Displacement | 348 cu in (5.8 L) |
| Torque Measured @ | 1350 rpm |
| Net Torque | 538 lb ft (729.5 Nm) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 38977.8 lb (17680 kg) |
| Fuel Capacity | 66.1 gal (250 L) |
| Cooling System Fluid Capacity | 6.7 gal (25 L) |
| Engine Oil Capacity | 6.7 gal (25 L) |
| Front Diff Fluid Capacity | 2.6 gal (9.5 L) |
| Rear Diff Fluid Capacity | 3.4 gal (12.5 L) |
| Hydraulic System Fluid Capacity | 68.7 gal (260 L) |
| Operational Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
| Hydraulic System Relief Valve Pressure | 5221 psi (35997.5 kPa) |
| Hydraulic Pump Type | high-flow electronically-controlled |
| Hydraulic Pump Flow Capacity | 64.2 gal/min (243.1 L/min) |
| Oscillating Axle Angle | 9 degrees |
| Tire Size | 10.00-20 |
Swing Mechanism
| Swing Speed | 10 rpm |
| Swing Torque | 36583 lb ft (- Nm) |
Transmission
| Transmission Type | powershift |
| Max Travel Speed | 21.8 mph (35 km/h) |
Buckets
| Reference Bucket Capacity | 1 yd3 (0.8 m3) |
