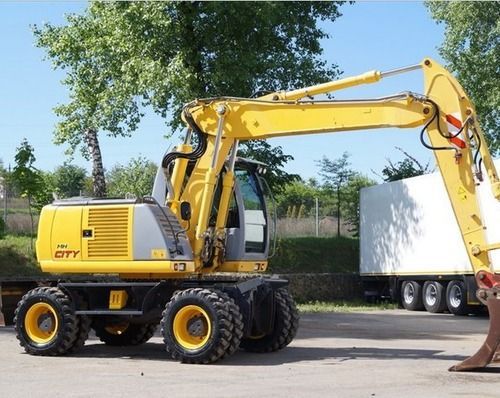

New Holland MHCITY
Browse All New Holland or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Shipping Length Of Unit | 26.83 ft in (8175 mm) |
| Shipping Height Of Unit | 9.88 ft in (3010 mm) |
| Max Cutting Height | 30.3 ft in (9235 mm) |
| Max Loading Height | 22.3 ft in (6795 mm) |
| Max Reach Along Ground | 26.65 ft in (8120 mm) |
| Max Vertical Wall Dig Depth | 10.16 ft in (3096 mm) |
| Max Digging Depth | 15.67 ft in (4775 mm) |
| Boom/Stick Option (Mex) 1 | 2pc Boom / stick 2000mm |
Boom/Stick Option (Mex) 2
| Shipping Length Of Unit | 26.84 ft in (8180 mm) |
| Shipping Height Of Unit | 9.88 ft in (3010 mm) |
| Max Cutting Height | 30.63 ft in (9335 mm) |
| Max Loading Height | 22.63 ft in (6895 mm) |
| Max Reach Along Ground | 27.42 ft in (8355 mm) |
| Max Vertical Wall Dig Depth | 11.52 ft in (3510 mm) |
| Max Digging Depth | 16.59 ft in (5055 mm) |
| Boom/Stick Option (Mex) 2 | 2pc Boom / stick 2300mm |
Boom/Stick Option (Mex) 3
| Shipping Height Of Unit | 10.08 ft in (3070 mm) |
| Shipping Length Of Unit | 26.53 ft in (8085 mm) |
| Max Cutting Height | 31.39 ft in (9565 mm) |
| Max Loading Height | 23.38 ft in (7125 mm) |
| Max Reach Along Ground | 28.37 ft in (8645 mm) |
| Max Vertical Wall Dig Depth | 12.41 ft in (3780 mm) |
| Max Digging Depth | 17.59 ft in (5360 mm) |
| Boom/Stick Option (Mex) 3 | 2pc Boom / stick 2600mm |
Dimensions
| Wheelbase | 8.37 ft in (2550 mm) |
| Tail Swing Radius | 5.75 ft in (1750 mm) |
| Overall Width | 8.34 in (2540 mm) |
| Ground Clearance | 1.14 ft in (345 mm) |
| Overall Width - Outriggers Down | 12.8 ft in (3900 mm) |
| Height To Top Of Cab | 9.88 ft in (3010 mm) |
| Upper Structure Clearance | 4.01 ft in (1220 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Model | CNH - F4BE0484E |
| Net Power | 111 hp (82.8 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 238 cu in (3.9 L) |
| Aspiration | turbocharger and charge air cooling |
Operational
| Fuel Capacity | 55.5 gal (210 L) |
| Operating Weight | 33807.9 lb (15335 kg) |
| Cooling System Fluid Capacity | 6.9 gal (26 L) |
| Engine Oil Capacity | 3.5 gal (13 L) |
| Hydraulic System Fluid Capacity | 29.1 gal (110 L) |
| Operational Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
| Hydraulic System Relief Valve Pressure | 5003.9 psi (34500 kPa) |
| Hydraulic Pump Type | 3 Variable Displacement, Axial Piston |
| Hydraulic Pump Flow Capacity | 87.2 gal/min (330 L/min) |
| Tire Size | 10.00-20 |
Swing Mechanism
| Swing Speed | 9.5 rpm |
| Swing Torque | 28027.4 lb ft (38000.1 Nm) |
Transmission
| Max Travel Speed | 12.5 mph (20 km/h) |
| Drawbar Pull | 20457.7 lb (9279.5 kg) |
Buckets
| Reference Bucket Capacity | 0.6 yd3 (0.5 m3) |
| Minimum Bucket Capacity | 0.4 yd3 (0.3 m3) |
| Maximum Bucket Capacity | 0.9 yd3 (0.7 m3) |
