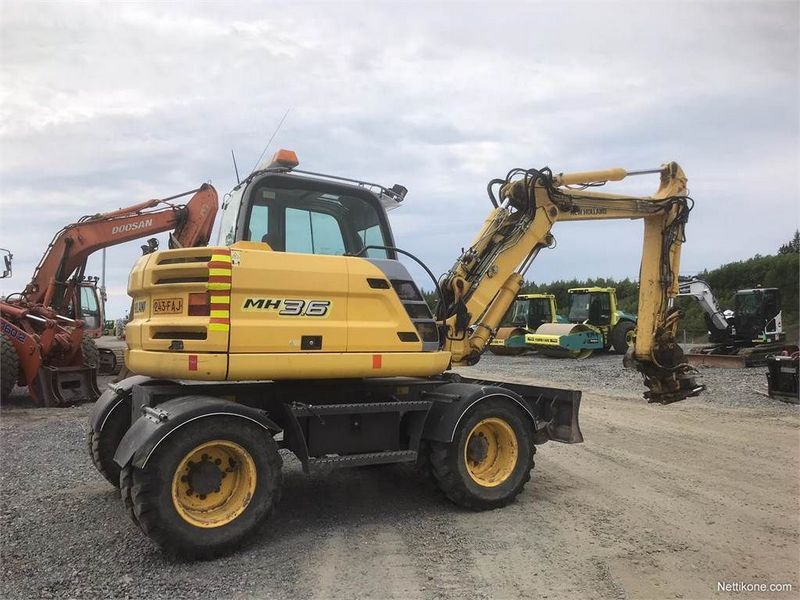

New Holland MH3.6
Browse All New Holland or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Shipping Length Of Unit | 25.37 ft in (7730 mm) |
| Shipping Height Of Unit | 10.13 ft in (3085 mm) |
| Max Cutting Height | 28.74 ft in (8759 mm) |
| Max Loading Height | 20.35 ft in (6201 mm) |
| Max Reach Along Ground | 27.81 ft in (8474 mm) |
| Max Vertical Wall Dig Depth | 8.44 ft in (2570 mm) |
| Max Digging Depth | 14.74 ft in (4491 mm) |
| Boom/Stick Option (Mex) 1 | stick 2000mm |
Boom/Stick Option (Mex) 2
| Shipping Length Of Unit | 26.35 ft in (8030 mm) |
| Shipping Height Of Unit | 10.13 ft in (3085 mm) |
| Max Cutting Height | 29.79 ft in (9080 mm) |
| Max Loading Height | 21.36 ft in (6510 mm) |
| Max Reach Along Ground | 28.96 ft in (8824 mm) |
| Max Vertical Wall Dig Depth | 9.33 ft in (2841 mm) |
| Max Digging Depth | 15.88 ft in (4838 mm) |
| Boom/Stick Option (Mex) 2 | stick 2350mm |
Dimensions
| Wheelbase | 7.88 ft in (2400 mm) |
| Tail Swing Radius | 5.48 ft in (1670 mm) |
| Overall Width | 8.14 in (2480 mm) |
| Ground Clearance | 1.19 ft in (360 mm) |
| Height To Top Of Cab | 10.13 ft in (3085 mm) |
| Upper Structure Clearance | 3.79 ft in (1155 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Model | CNH F4BE0484B* |
| Net Power | 117 hp (87.3 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 238 cu in (3.9 L) |
| Aspiration | Turbocharged with intercooler |
Operational
| Operating Weight | 27778.3 lb (12600 kg) |
| Fuel Capacity | 42.8 gal (162 L) |
| Cooling System Fluid Capacity | 5.9 gal (22 L) |
| Engine Oil Capacity | 3.5 gal (13 L) |
| Hydraulic System Fluid Capacity | 29.1 gal (110 L) |
| Operational Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
| Hydraulic Pump Type | Gear Pump |
| Hydraulic Pump Flow Capacity | 48.1 gal/min (182 L/min) |
| Oscillating Axle Angle | 14 degrees |
| Tire Size | 600/40-22.5 |
Swing Mechanism
| Swing Speed | 8.3 rpm |
| Swing Torque | 19176.7 lb ft (26000.1 Nm) |
Transmission
| Transmission Type | hydrostatic, two-speed, 4 wheels drive |
| Max Travel Speed | 20.6 mph (33 km/h) |
| Drawbar Pull | 17760 lb (8055.8 kg) |
Buckets
| Reference Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Minimum Bucket Capacity | 0.1 yd3 (0.1 m3) |
| Maximum Bucket Capacity | 0.4 yd3 (0.3 m3) |
