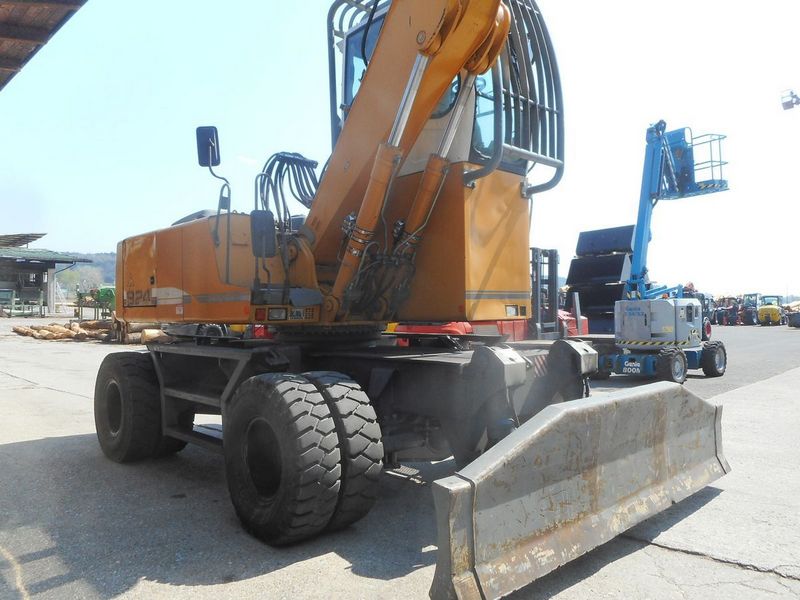

Liebherr A924C
Browse All Liebherr or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Shipping Length Of Unit | 31.5 ft in (9600 mm) |
| Shipping Height Of Unit | 10.55 ft in (3215 mm) |
| Max Cutting Height | 34.95 ft in (10650 mm) |
| Max Loading Height | 24.61 ft in (7500 mm) |
| Max Reach Along Ground | 31.01 ft in (9450 mm) |
| Max Vertical Wall Dig Depth | 14.11 ft in (4300 mm) |
| Max Digging Depth | 19.53 ft in (5950 mm) |
| Boom/Stick Option (Mex) 1 | 3.9m boom / 2.25m stick |
Boom/Stick Option (Mex) 2
| Shipping Length Of Unit | 31.5 ft in (9600 mm) |
| Shipping Height Of Unit | 10.55 ft in (3215 mm) |
| Max Cutting Height | 35.6 ft in (10850 mm) |
| Max Loading Height | 25.1 ft in (7650 mm) |
| Max Reach Along Ground | 31.67 ft in (9650 mm) |
| Max Vertical Wall Dig Depth | 14.44 ft in (4400 mm) |
| Max Digging Depth | 20.18 ft in (6150 mm) |
| Boom/Stick Option (Mex) 2 | 3.9m boom / 2.45m stick |
Boom/Stick Option (Mex) 3
| Shipping Height Of Unit | 10.55 ft in (3215 mm) |
| Shipping Length Of Unit | 31.5 ft in (9600 mm) |
| Max Cutting Height | 36.09 ft in (11000 mm) |
| Max Loading Height | 25.6 ft in (7800 mm) |
| Max Reach Along Ground | 32.32 ft in (9850 mm) |
| Max Vertical Wall Dig Depth | 14.77 ft in (4500 mm) |
| Max Digging Depth | 20.84 ft in (6350 mm) |
| Boom/Stick Option (Mex) 3 | 3.9m boom / 2.65m stick |
Boom/Stick Option (Mex) 4
| Shipping Height Of Unit | 10.55 ft in (3215 mm) |
| Shipping Length Of Unit | 31.5 ft in (9600 mm) |
| Max Cutting Height | 36.91 ft in (11250 mm) |
| Max Loading Height | 26.42 ft in (8050 mm) |
| Max Reach Along Ground | 33.47 ft in (10200 mm) |
| Max Vertical Wall Dig Depth | 16.08 ft in (4900 mm) |
| Max Digging Depth | 22.15 ft in (6750 mm) |
| Boom/Stick Option (Mex) 4 | 3.9m boom / 3.05m stick |
Dimensions
| Wheelbase | 9.03 ft in (2750 mm) |
| Overall Width | 9.03 in (2750 mm) |
| Ground Clearance | 1.25 ft in (380 mm) |
| Overall Width - Outriggers Down | 13.98 ft in (4260 mm) |
| Upper Structure Clearance | 4.25 ft in (1295 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2245 |
| Engine Model | D 934 L |
| Gross Power | 184 hp (135 kw) |
| Power Measured @ | 1800 rpm |
| Displacement | 427.2 cu in (7 L) |
| Aspiration | turbo-charged and after-cooled reduced emissions |
Operational
| Fuel Capacity | 105.7 gal (400 L) |
| Operating Weight | 56400 lb (25582.7 kg) |
| Hydraulic System Fluid Capacity | 113.6 gal (430 L) |
| Operational Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
| Hydraulic System Relief Valve Pressure | 5076.4 psi (35000 kPa) |
| Hydraulic Pump Flow Capacity | 56.8 gal/min (215 L/min) |
| Tire Size | 11.00-20 |
Swing Mechanism
| Swing Speed | 8 rpm |
| Swing Torque | lb ft (74 Nm) |
Transmission
| Transmission Type | oversized two speed power shift transmission with additional creeper speed |
| Max Travel Speed | 12.5 mph (20 km/h) |
Buckets
| Minimum Bucket Capacity | 0.5 yd3 (0.4 m3) |
| Maximum Bucket Capacity | 1.9 yd3 (1.5 m3) |
