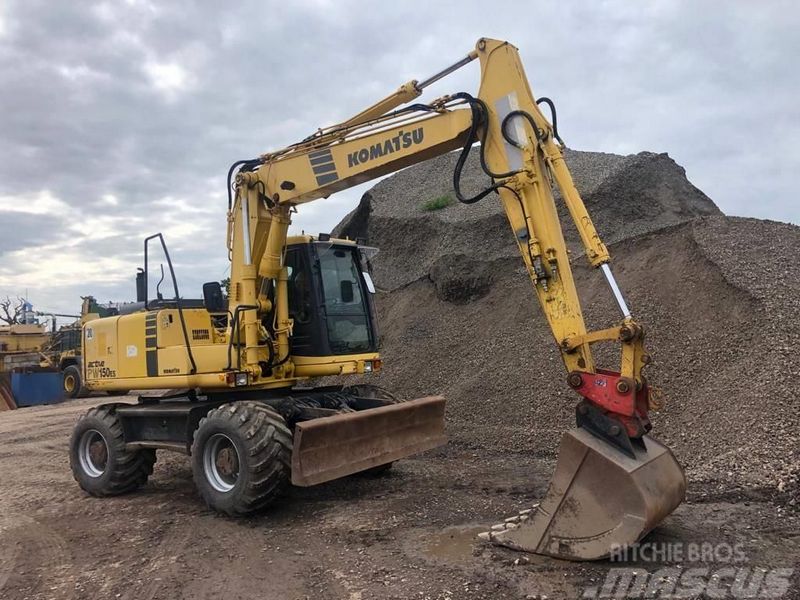

Komatsu PW150ES-6
Browse All Komatsu or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Max Cutting Height | 28.42 ft in (8660 mm) |
| Max Loading Height | 20.77 ft in (6330 mm) |
| Max Reach Along Ground | 25.17 ft in (7670 mm) |
| Max Vertical Wall Dig Depth | 11.85 ft in (3610 mm) |
| Max Digging Depth | 15.49 ft in (4720 mm) |
| Boom/Stick Option (Mex) 1 | boom w/ stick 2100mm |
Boom/Stick Option (Mex) 2
| Max Cutting Height | 29.17 ft in (8890 mm) |
| Max Loading Height | 21.53 ft in (6560 mm) |
| Max Reach Along Ground | 26.42 ft in (8050 mm) |
| Max Vertical Wall Dig Depth | 12.98 ft in (3956 mm) |
| Max Digging Depth | 16.8 ft in (5120 mm) |
| Boom/Stick Option (Mex) 2 | boom w/ stick 2500mm |
Boom/Stick Option (Mex) 3
| Max Cutting Height | 30.42 ft in (9270 mm) |
| Max Loading Height | 22.74 ft in (6930 mm) |
| Max Reach Along Ground | 28.09 ft in (8560 mm) |
| Max Vertical Wall Dig Depth | 14.59 ft in (4445 mm) |
| Max Digging Depth | 18.44 ft in (5620 mm) |
| Boom/Stick Option (Mex) 3 | boom w/ stick 3000mm |
Boom/Stick Option (Mex) 4
| Max Cutting Height | 29.42 ft in (8965 mm) |
| Max Loading Height | 21.67 ft in (6605 mm) |
| Max Reach Along Ground | 26.01 ft in (7925 mm) |
| Max Vertical Wall Dig Depth | 12.75 ft in (3886 mm) |
| Max Digging Depth | 16.34 ft in (4980 mm) |
| Boom/Stick Option (Mex) 4 | two piece boom w/ stick 2100mm |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2238 |
| Engine Model | SA4D102E-1 |
| Gross Power | 112 hp (83.6 kw) |
| Net Power | 107 hp (79.8 kw) |
| Power Measured @ | 2300 rpm |
| Displacement | 239.3 cu in (4 L) |
| Aspiration | Turbocharged |
Operational
| Fuel Capacity | 66.1 gal (250 L) |
| Operating Weight | 36354.3 lb (16490 kg) |
| Cooling System Fluid Capacity | 5.3 gal (20 L) |
| Engine Oil Capacity | 4.3 gal (16 L) |
| Front Diff Fluid Capacity | 4 gal (15 L) |
| Rear Diff Fluid Capacity | 5.3 gal (20 L) |
| Hydraulic System Fluid Capacity | 35.7 gal (135 L) |
| Operational Voltage | 24 V |
| Alternator Supplied Amperage | 45 amps |
| Hydraulic System Relief Valve Pressure | 4623 psi (31874.5 kPa) |
| Hydraulic Pump Type | variable displacement piston |
| Hydraulic Pump Flow Capacity | 79 gal/min (299 L/min) |
| Oscillating Axle Angle | 14 degrees |
Swing Mechanism
| Swing Speed | 12 rpm |
Transmission
| Transmission Type | fully automatic |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Travel Speed | 18.7 mph (30 km/h) |
