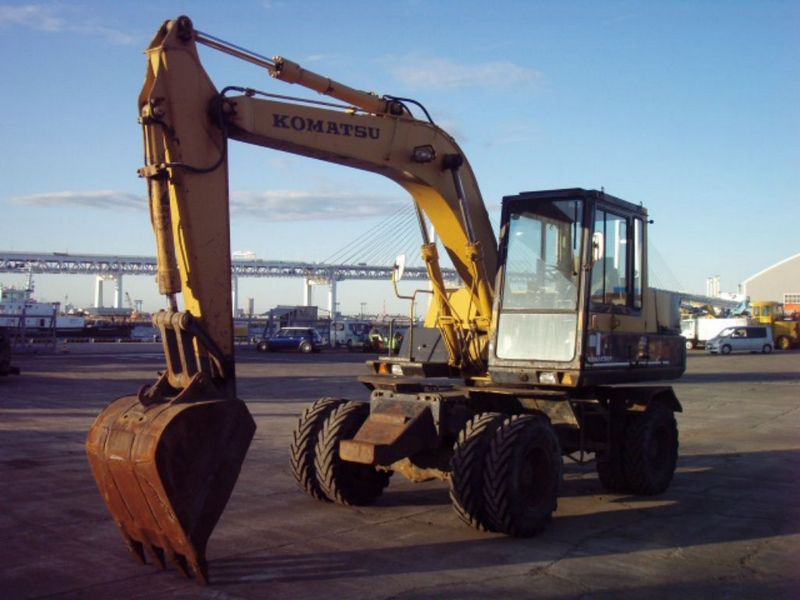

Komatsu PW100-3
Browse All Komatsu or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Shipping Length Of Unit | 22.76 ft in (6935 mm) |
| Shipping Height Of Unit | 11.96 ft in (3645 mm) |
| Max Cutting Height | 26.09 ft in (7950 mm) |
| Max Loading Height | 18.71 ft in (5700 mm) |
| Max Reach Along Ground | 23.69 ft in (7220 mm) |
| Max Vertical Wall Dig Depth | 11.82 ft in (3600 mm) |
| Max Digging Depth | 14.47 ft in (4410 mm) |
| Boom/Stick Option (Mex) 1 | Boom 14'0" (4260mm)/Stick 6'9" (2060mm) |
Boom/Stick Option (Mex) 2
| Shipping Length Of Unit | 22.35 ft in (6810 mm) |
| Shipping Height Of Unit | 12.31 ft in (3750 mm) |
| Max Cutting Height | 26.71 ft in (8140 mm) |
| Max Loading Height | 19.3 ft in (5880 mm) |
| Max Reach Along Ground | 24.64 ft in (7510 mm) |
| Max Vertical Wall Dig Depth | 12.87 ft in (3920 mm) |
| Max Digging Depth | 15.46 ft in (4710 mm) |
| Boom/Stick Option (Mex) 2 | Boom 14'0" (4260mm)/Stick 7'9" (2360mm) |
Dimensions
| Wheelbase | 8.54 ft in (2600 mm) |
| Tail Swing Radius | 6.89 ft in (2100 mm) |
| Overall Width | 8.03 in (2445 mm) |
| Ground Clearance | 1.05 ft in (320 mm) |
| Height To Top Of Cab | 9.91 ft in (3020 mm) |
| Upper Structure Clearance | 3.99 ft in (1215 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | S6D95L |
| Gross Power | 108.7 hp (81 kw) |
| Power Measured @ | 2100 rpm |
| Displacement | 298.5 cu in (4.9 L) |
Operational
| Fuel Capacity | 55.5 gal (210 L) |
| Operating Weight | 24427.3 lb (11080 kg) |
| Hydraulic System Fluid Capacity | 29.1 gal (110 L) |
| Hydraulic System Relief Valve Pressure | 4690 psi (32336.4 kPa) |
| Hydraulic Pump Flow Capacity | 61.6 gal/min (233 L/min) |
Swing Mechanism
| Swing Speed | 11.8 rpm |
Transmission
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Travel Speed | 21.5 mph (34.5 km/h) |
Buckets
| Reference Bucket Capacity | 0.4 yd3 (0.3 m3) |
| Minimum Bucket Capacity | 0.2 yd3 (0.2 m3) |
| Maximum Bucket Capacity | 0.5 yd3 (0.4 m3) |
