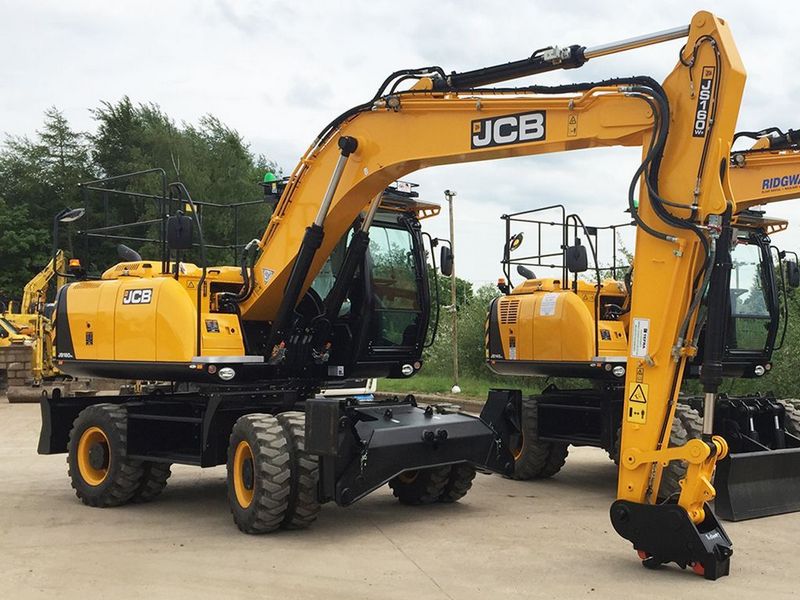

JCB JS160W
Browse All JCB or Mobile Excavator Models
Contents:
Boom/Stick Option (Mex) 1
| Shipping Length Of Unit | 26.73 ft in (8145 mm) |
| Shipping Height Of Unit | 9.08 ft in (2765 mm) |
| Max Cutting Height | 30.17 ft in (9195 mm) |
| Max Loading Height | 21.02 ft in (6405 mm) |
| Max Reach Along Ground | 27.74 ft in (8455 mm) |
| Max Vertical Wall Dig Depth | 14.74 ft in (4490 mm) |
| Max Digging Depth | 17.8 ft in (5425 mm) |
| Boom/Stick Option (Mex) 1 | monoboom w/ dipper arm 2250mm |
Boom/Stick Option (Mex) 2
| Shipping Length Of Unit | 26.69 ft in (8135 mm) |
| Shipping Height Of Unit | 9.08 ft in (2765 mm) |
| Max Cutting Height | 31.58 ft in (9625 mm) |
| Max Loading Height | 22.23 ft in (6775 mm) |
| Max Reach Along Ground | 29.12 ft in (8875 mm) |
| Max Vertical Wall Dig Depth | 16.57 ft in (5050 mm) |
| Max Digging Depth | 19.28 ft in (5875 mm) |
| Boom/Stick Option (Mex) 2 | monoboom w/ dipper arm 2700mm |
Boom/Stick Option (Mex) 3
| Shipping Height Of Unit | 10.63 ft in (3240 mm) |
| Shipping Length Of Unit | 27.26 ft in (8306 mm) |
| Max Cutting Height | 32.9 ft in (10025 mm) |
| Max Loading Height | 23.45 ft in (7145 mm) |
| Max Reach Along Ground | 30.43 ft in (9275 mm) |
| Max Vertical Wall Dig Depth | 18.41 ft in (5610 mm) |
| Max Digging Depth | 20.43 ft in (6225 mm) |
| Boom/Stick Option (Mex) 3 | monoboom w/ dipper arm 3050 |
Dimensions
| Ground Clearance | 1.15 ft in (350 mm) |
| Overall Width - Outriggers Down | 8.17 ft in (2490 mm) |
| Height To Top Of Cab | 10.08 ft in (3070 mm) |
| Upper Structure Clearance | 4.17 ft in (1270 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2353 |
| Engine Model | JCB EcoMAX 444 TCA EU Stage IV, EPA Tier 4 Final compliant |
| Engine Type | 4-stroke, 4-cyclinder in-line, common rail, direct injection, turbo charged and intercooled diesel |
| Cooling System | Large capacity radiator |
| Net Power | 109 hp (81.3 kw) |
| Power Measured @ | 2200 rpm |
| Rated Power | 125 hp (93.3 kw) |
| Displacement | 268.5 cu in (4.4 L) |
| Alternator | 55 amps |
| Injection | Electronic injection. |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 33303.1 lb (15106 kg) |
| Fuel Capacity | 63.5 gal (240 L) |
| Cooling System Fluid Capacity | 4.4 gal (16.4 L) |
| Engine Oil Capacity | 3.9 gal (14.7 L) |
| Front Diff Fluid Capacity | 3.7 gal (14 L) |
| Rear Diff Fluid Capacity | 3.2 gal (12 L) |
| Hydraulic System Fluid Capacity | 32.8 gal (124 L) |
| Operational Voltage | 24 V |
| Alternator Supplied Amperage | 50 amps |
| Hydraulic System Relief Valve Pressure | 4975 psi (34301.4 kPa) |
| Hydraulic Pump Type | load-sensed hydraulic system with twin variable flow piston pumps roviding flow on demand for maximum efficiency |
| Hydraulic Pump Flow Capacity | 73 gal/min (276 L/min) |
| Oscillating Axle Angle | 17 degrees |
| Tire Size | twins: 10x20 16PR, single: 18R19.5 (Radials) |
Swing Mechanism
| Swing Speed | 11.3 rpm |
Transmission
| Transmission Type | hydrostatic, powershift |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Travel Speed | 15.6 mph (25 km/h) |
